RAM® Marine Electronics Mount - D Size Medium
Part#:RAM-D-115 UPC:793442955617
Ball size D
Arm length Medium
2 599 kr
Incl. VAT
In stock — ready to ship
Backed by manufacturer warranty
Exclusive Nordic RAM® distributor
Expert product & mounting support
  • Complete flat surface, drill-down mounting solution with medium length D size socket arm compatible with 9"-12" fish finder gimbal brackets
  • RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty
Related RAM® Products
RAM® Hi-Torq™ Wrench for D Size Socket Arms
RAM® Hi-Torq™ Wrench for D Size Socket ...
RAM® Pin-Lock™ Security Nut for D & E Size Socket Arms
RAM® Pin-Lock™ Security Nut for D & E S...
RAM® Cable Manager for Large Electronic Mounts
RAM® Cable Manager for Large Electronic...
RAM® Tough-Mag™ 48MM 4-Point Magnetic Mounting Base
RAM® Tough-Mag™ 48MM 4-Point Magnetic M...
RAM® 4" Offset Vehicle Base Riser
RAM® 4" Offset Vehicle Base Riser
RAM® 7" Offset Vehicle Base Riser
RAM® 7" Offset Vehicle Base Riser

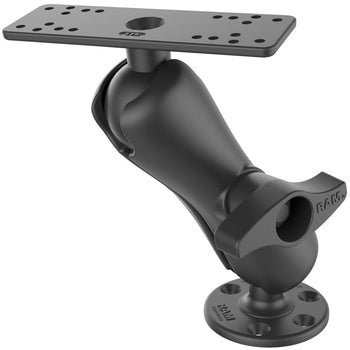

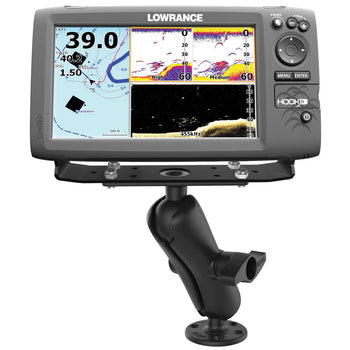

The RAM® Large Marine Electronics Mount (RAM-D-115) is a complete, drill-down mounting solution for fish finders, chartplotters, and other large electronic devices. This kit consists of D size components, including a 3.68" diameter round base, medium-length double socket arm, and 6.25" x 2" rectangular adapter plate. The round base is pre-drilled with several combinations of holes, including two holes at 180° and three holes at 120°. The adapter plate contains different combinations of pre-drilled holes which will match up to popular electronic devices and gimbal brackets. Included are four shoulder washers that allow smaller hardware to fit properly in the large holes of this plate.
product dimensions

Overall Height: 10.7"
socket to socket length

6.88"
hole pattern

See Drawings
plate size

Top Plate: 6.25" x 2"
Bottom Plate: 3.68" Diameter
ball size

D Size (2.25")
weight capacity

Standard Use: 6 lbs
Heavy-Duty Use: 5 lbs
materials

Marine-grade aluminum
packaging type

Retail Box
Weight

1.928 kg
Additional information
The 6.25" x 2" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
