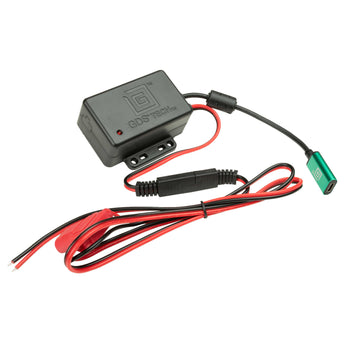

GDS® Hardwire USB Type-C Power Delivery Charger – No Cable
Part#:RAM-GDS-CHARGE-V3FC-2U-NC UPC:793442028649
1 679 kr
  • Hardwire charger includes USB Type-C female connection with an input voltage of 10-28V
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty
The GDS® Modular Hardwire Charger with USB Type-C Female Connector is the ideal solution for providing power to any USB Type-C GDS® vehicle solution. By connecting directly to the power source of your vehicle, the GDS® Modular Hardwire Charger delivers USB Type-C power to your device with an input voltage of 10-28V. Avoid rewiring when changing or upgrading devices by simply unplugging the power connector and installing the new charger. Always Protected. Always Connected.®
packaging type

Poly Bag
input voltage

10-28VDC
output voltage

5V @ 1A (5W)
9V @ 2A (18W)
12V @ 2A (24W)
output current

3A max
input connector

Female USB Type-C
input cable length

1.2 Meters including 2 Pole Flat Marine Connector
output cable length

150mm
operating temperature

-20°C to +70°C
storage temperature

-40°C to +85°C
regulatory

Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)
certifications

FCC, IC, CE RCM, WEEE, RoHS Compliant
USB Power Delivery 2.0 and 3.0 Support
Warranty

3 year warranty
Weight

0.0 kg
Additional Information
To determine which hardwire charger is most suitable for your application, please see Hardwire Charger Compatibility Guide.
