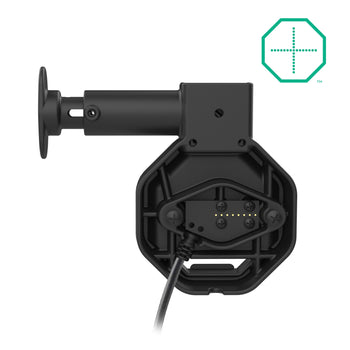

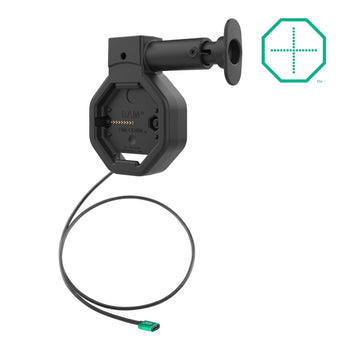

GDS® Uni-Conn™ Powered USB-C Dock with Release Button
Part#:RAM-GDS-DOCK-U5CPU UPC:793442031779
1 089 kr
Fast shipping from Halmstad, Sweden
Official RAM® Mounts distributor
Expert support on mounting solutions
  • Quick-release dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging
  • Designed for devices enclosed in IntelliSkin® with Rear Pogo Pads
  • USB Type-C female connector enables high-speed charging capabilities
  • RAM® Compatible™ complete your solution with a diamond ball adapter, arm, and base of choice
  • Backed by a 3-year warranty

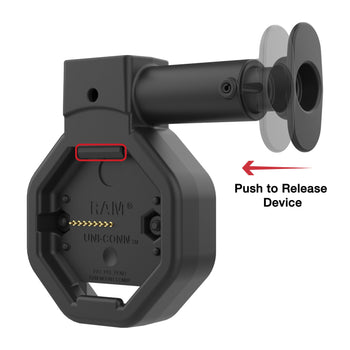

The GDS® Uni-Conn™ Powered USB-C Dock with Release Button (RAM-GDS-DOCK-U5CPU) is a versatile quick-release docking solution for devices enclosed in an IntelliSkin® with rear pogo pads. Power is provided to the pogo pins integrated into the GDS® Uni-Conn™ adapter via the USB-C connector. It features an easy docking and undocking process simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of the release button frees the tablet. This dock features a 2-hole AMPS pattern, allowing it to be integrated into the RAM® ball and socket mounting system with a RAM® Diamond or Round Ball Base. The snap-in attachment method makes this dock ideal for rugged environments, including vehicles. The GDS® Uni-conn™ dock is backed by a 3-year warranty. One Dock to Connect Them All™ Always Protected. Always Connected.®
hardware included

(2) #8-32 x 7/8" Machine Screws
(2) #8-32 Nylock Nuts

hole pattern

2-Hole AMPS: 1.912"

materials

High strength composite

packaging type

Poly Bag

output voltage

USB-C Tablets: 5V - 20V @ 3A Max
mUSB Tablets: 9V @ 1.67A Max

power output

60W Max

input connector

USB Type-C (Female)

input cable length

800mm

Warranty

3 year warranty

Weight

0.0 kg

Additional Information
GDS® Uni-Conn™ Snap-In docks are not recommended for open cockpit applications, such as forklifts. Consider the GDS® Tough-Dock™ for extreme applications.
