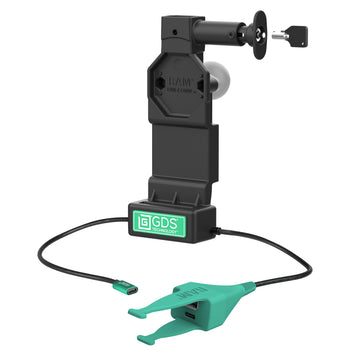

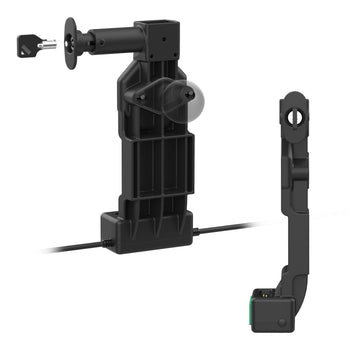

GDS® Uni-Conn™ Locking Dock + Dual USB-A & USB-C with Release Button
Part#:RAM-GDS-DOCKL-U4CP-CAU UPC:793442031236
2 649 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

RAM® Locking Drill-Down Dashboard Mount with Backing Plate - C Size Med
Recommended add-on
RAM® Locking Drill-Down Dashboard Mount with Backing Plate - C Size Med
1 369 kr
Details

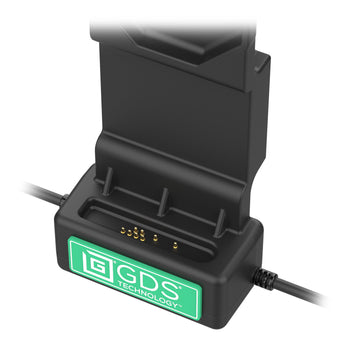

  • Snap-in, locking dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging

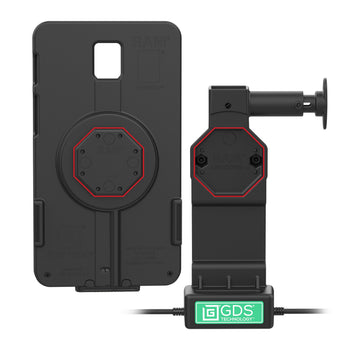

  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
  • USB Type-C Female connector provides high-speed charging and dual USB-A and USB Type-C connects up to two peripheral devices
  • RAM® Mounts Compatible™
  • Backed by a 3-year warranty
Related RAM® Products
GDS® Keyboard™ with Track Pad
GDS® Keyboard™ with Track Pad
GDS® Keyboard™ with 10-Key Numeric Pad
GDS® Keyboard™ with 10-Key Numeric Pad
RAM® Vent-Temp™ with Front Dock Connection for Rectangular Vents
RAM® Vent-Temp™ with Front Dock Connect...
RAM® Vent-Temp™ with Front Dock Connection for Round Vents
RAM® Vent-Temp™ with Front Dock Connect...

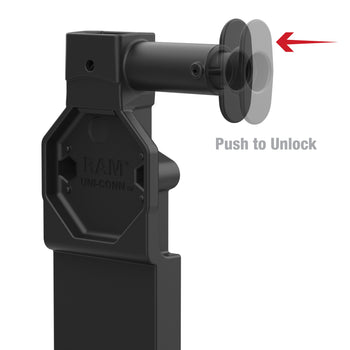

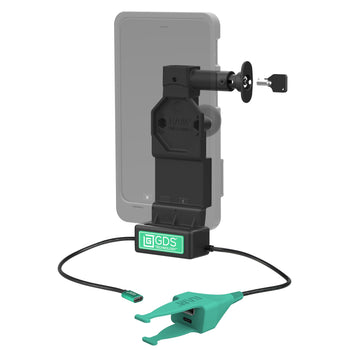

The GDS® Uni-Conn™ Locking Dock + Dual USB-A & USB-C with Release Button (RAM-GDS-DOCKL-U4CP-CAU) is a revolutionary universal docking platform. This quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Integrate up to two peripheral devices into your solution with the dual USB-A and USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a release button frees the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.
hardware included

(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nyloc Nuts
(1) Cable Clamp Kit
hole pattern

2-Hole AMPS: 1.912"
materials

High strength composite
packaging type

Poly Bag
output voltage

5V - 20V @ 3A
power output

60W
input connector

USB Type-C (Power In)
input cable length

215mm
output connector

(1) USB Type-C & (1) USB Type-A (Peripheral)
output cable length

215mm
peripheral output

900mA (per port)
Warranty

3 year warranty
Additional information
GDS® Uni-Conn™ Snap-In docks are not recommended for open cockpit applications, such as forklifts. Consider the GDS® Tough-Dock™ for extreme applications.
