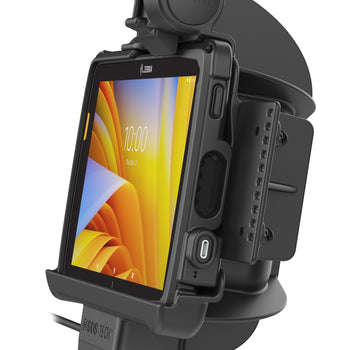

GDS® Power + Data Dock with Latch for Zebra ET401 & ET4x 8"

Part#:RAM-GDS-DOCKNLL-ZE20PDU UPC:793442017087

RAM-GDS-DOCKNLL-ZE20PDU:RAM-GDS-DOCKNLL-ZE20PDU_2:GDS Power + Data Dock with Latch for Zebra ET401 & ET4x 8"

RAM-GDS-DOCKNLL-ZE20PDU:RAM-GDS-DOCKNLL-ZE20PDU_3:GDS Power + Data Dock with Latch for Zebra ET401 & ET4x 8"

RAM-GDS-DOCKNLL-ZE20PDU:RAM-GDS-DOCKNLL-ZE20PDU_4:GDS Power + Data Dock with Latch for Zebra ET401 & ET4x 8"

GDS® Power + Data Dock with Latch for Zebra ET401 & ET4x 8"

Part#:RAM-GDS-DOCKNLL-ZE20PDU UPC:793442017087

3 069 kr

Incl. VAT

Options

Powered latch dock featuring GDS® Technology™ with data and charging capabilities for the Zebra ET401, and ET40 & ET45 8" enterprise tablets with IntelliSkin® Next Generation protective sleeve via USB Type-C for power and USB Type A connector for adding a peripheral MIL-STD 810G Shock and Vibration tested
When connected to a power source via USB Type-C connector, integrated pogo pins provide power to the IntelliSkin-wrapped ET4x while docked
Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
Built-in 2-hole mounting plate for additional device mounting such as a phone compatible with RAM® 2-hole diamond bases and accessory side bracket
Backed by a 3-year warranty

Related RAM® Components

RAM® Temp-Right™ Dock Heating Module fo...

RAM® Vent-Temp™ with Back Dock Connecti...

RAM® Vent-Temp™ with Front Dock Connect...

Information

Information
Compatibility
Complete Your Solution
Resources

For frequent docking and undocking of the Zebra ET401, ET40, and ET45 8" tablets wrapped in an IntelliSkin® protective sleeve, this form-fit GDS® vehicle dock (RAM-GDS-DOCKNLL-ZE20PDU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a USB Type-C connector and allows you to keep the device charged through the pogo pin contacts when the IntelliSkin®-wrapped ET4x 8" is docked. A single USB Type-A pigtail connector is provided for adding one additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any C and D size RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the GDS® Ecosystem™ and the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device. Always Protected. Always Connected.®

hardware included	(1) Side bracket for accessory mounting (4) #8-32 x 5/8” Machine Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-24 x 5/8” Machine Screws (4) #10-24 Nylock Nuts (2) Small Cable Ties
hole pattern	75 x 75mm VESA 4-Hole AMPS: 1.181" x 1.496"
materials	High strength composite
packaging type	Poly Bag
output voltage	5V - 15V @ 3A
power output	45W
input connector	USB Type-C
input cable length	215mm
output connector	USB 2.0 Type A
output cable length	215mm
peripheral output	500mA
transfer speed	12Mbps
certifications	RoHS WEEE CE UKCA
Warranty	3 year warranty
Weight	0.652 kg
Additional Information	IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin®.

hardware included	(1) Side bracket for accessory mounting (4) #8-32 x 5/8” Machine Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-24 x 5/8” Machine Screws (4) #10-24 Nylock Nuts (2) Small Cable Ties
hole pattern	75 x 75mm VESA 4-Hole AMPS: 1.181" x 1.496"
materials	High strength composite
packaging type	Poly Bag
output voltage	5V - 15V @ 3A
power output	45W
input connector	USB Type-C
input cable length	215mm
output connector	USB 2.0 Type A
output cable length	215mm
peripheral output	500mA
transfer speed	12Mbps
certifications	RoHS WEEE CE UKCA
Warranty	3 year warranty
Weight	0.652 kg
Additional Information	IntelliSkin® is required for this dock. See RAM-GDS-SKIN-ZE21C-NG for compatible IntelliSkin®.
