RAM® Locking Powered Dock for Panasonic FZ-A3
Part#:RAM-HOL-PAN16PLU UPC:793442934025
4 229 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

GDS® Hand-Stand™ for Panasonic FZ-A3
Recommended add-on
GDS® Hand-Stand™ for Panasonic FZ-A3
909 kr
Details
GDS® Roto-Mag™ 3-in-1 Accessory for Panasonic FZ-A3
Recommended add-on
GDS® Roto-Mag™ 3-in-1 Accessory for Panasonic FZ-A3
939 kr
Details

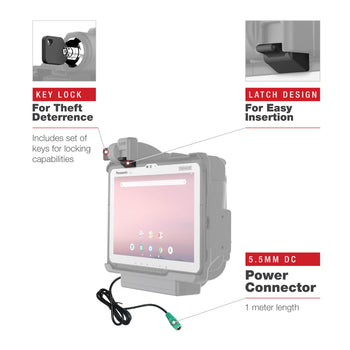

  • Spring-loaded, key-locking powered dock provides charging capabilities for the Panasonic FZ-A3 tablet via DC 5.5mm power jack

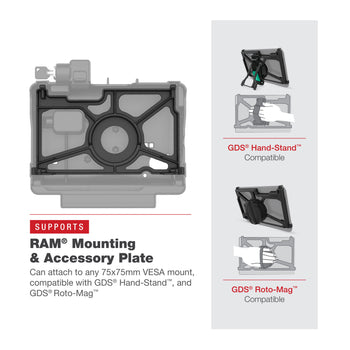

  • All buttons and ports on device are exposed and fully accessible supports Panasonic extended battery and the RAM® Mounting & Accessory Plate

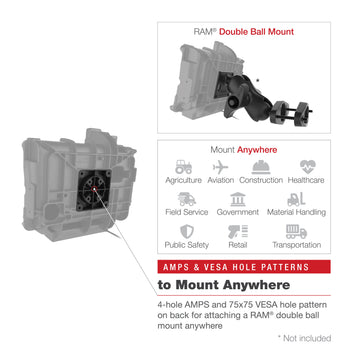

  • Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty
Related RAM® Products
GDS® 10-28VDC Input (16VDC Output) Hardwire Charger with Male DC 5.5mm
GDS® 10-28VDC Input (16VDC Output) Hard...
GDS® 28-60VDC Input (16VDC Output) Hardwire Charger with Male DC 5.5mm
GDS® 28-60VDC Input (16VDC Output) Hard...
GDS® Hand-Stand™ for Panasonic FZ-A3
GDS® Hand-Stand™ for Panasonic FZ-A3
GDS® Roto-Mag™ 3-in-1 Accessory for Panasonic FZ-A3
GDS® Roto-Mag™ 3-in-1 Accessory for Pan...
RAM® NFC Extender with Drill-Down Double Ball Mount
RAM® NFC Extender with Drill-Down Doubl...
RAM® NFC Extender with Dashboard Mount
RAM® NFC Extender with Dashboard Mount

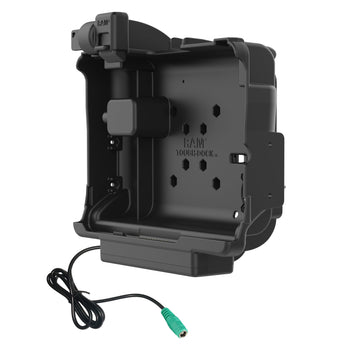

The RAM® key-locking, powered dock for the Panasonic FZ-A3 allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's 5.5mm DC power jack. This dock features cutouts that leave all buttons and ports exposed and accessible while also supporting the Panasonic extended battery, as well as RAM® Mounting & Accessory Plate. A 2-Hole AMPS Accessory bracket can easily be attached to the dock to add an additional mounting location for another device such as a phone. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.
hardware included

(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nyloc Nuts
product dimensions

Overall Height: 10.5"
Overall Width: 11.19"
Overall Depth: 4.16"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
materials

High strength composite
packaging type

Poly Bag
regulatory

FCC, IC, E-Mark
certifications

CE, RoHS
Weight

1.102 kg
Additional information
This dock will not support the factory OEM hand strap. For hand strap and other accessory capabilities that are compatible with this dock, see RAM-202-PAN16U.
