RAM® Key Locking Power + Data Dock for Samsung Tab Active5 & 3

Part#:RAM-HOL-SAM58CPKL-1AU UPC:793442022029

RAM-HOL-SAM58CPKL-1AU:RAM-HOL-SAM58CPKL-1AU_.2:RAM Key Locking Power + Data Dock for Samsung Tab Active5 & 3

RAM-HOL-SAM58CPKL-1AU:RAM-HOL-SAM58CPKL-1AU_.3:RAM Key Locking Power + Data Dock for Samsung Tab Active5 & 3

RAM® Key Locking Power + Data Dock for Samsung Tab Active5 & 3

Part#:RAM-HOL-SAM58CPKL-1AU UPC:793442022029

3 209 kr

Incl. VAT

Options

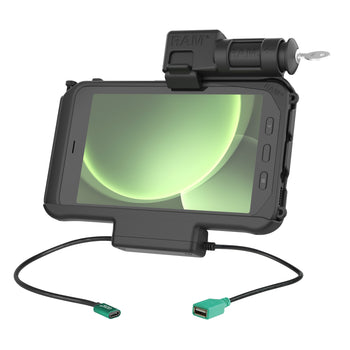

Key locking powered cradle provides charging and data transfer capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector

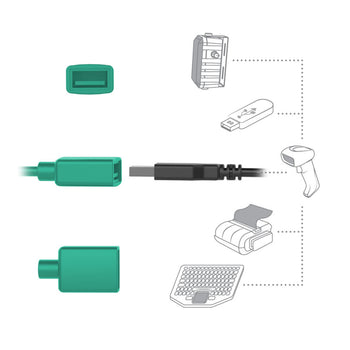

Powered via USB-C connector (Non-Power Delivery Charger required) connect a single input device via USB-A connector

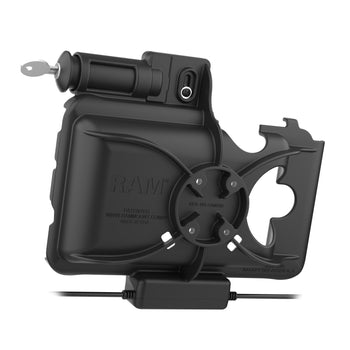

Contains 4-hole AMPS hole pattern for RAM® ball components
Access to speakers, mics, headphone jack, and NFC reader remain while device is docked allows access to the GDS® shoulder strap loops on RAM® Skin™
Backed by a 3-year warranty

Related RAM® Components

RAM® Vent-Temp™ with Front Dock Connect...

RAM® Rotating Ball Adapter for Phone an...

RAM® Spacer Plate Accessory for Flush M...

RAM® Roto-View™ Adapter Plate

RAM® Tough-Mag™ 88MM Diameter Magnetic ...

Information

Information
Compatibility
Complete Your Solution
Resources

This key locking RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port for an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle.

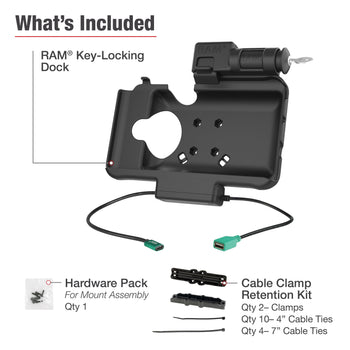

hardware included	(4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (1) Optional Cable Clamp Housing (2) Large Cable Ties (7) Small Cable Ties
product dimensions	Width: 9.25" Height: 7.75" Depth: 3"
hole pattern	4-Hole AMPS: 1.181" x 1.496"
materials	High strength composite
packaging type	Poly Bag
input voltage	5.3-5.4VDC
output voltage	5VDC
power output	500mA
input connector	USB Type-C Female
input cable length	250mm
output connector	USB 1.1 Type A
output cable length	250mm
peripheral output	500mA
transfer speed	12Mbps
Warranty	3 year warranty
Weight	0.501 kg
Additional Information	Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly. This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
