RAM® USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger

Standard

RAM® USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger

Part#:RAM-HOL-SAM60CP-V7CU UPC:793442019982

RAM-HOL-SAM60CP-V7CU:RAM-HOL-SAM60CP-V7CU_2:RAM USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger

RAM-HOL-SAM60CP-V7CU:RAM-HOL-SAM60CP-V7CU_3:RAM USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger

RAM® USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger

Part#:RAM-HOL-SAM60CP-V7CU UPC:793442019982

2 759 kr

Incl. VAT

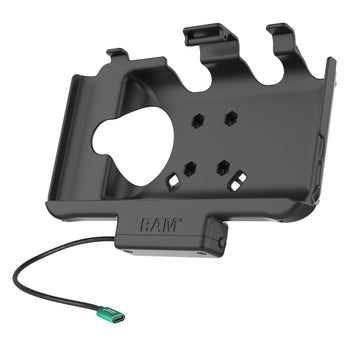

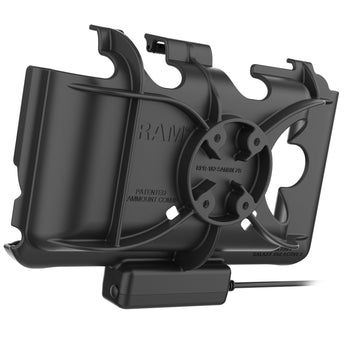

RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
Compatible with the Samsung OEM skin as well as the RAM® Skin™ built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
Access to speakers, mics, and headphone jack remain while device is docked allows access to the GDS® shoulder strap loops on RAM® Skin™
Vehicle hardwire charger included
Back by a 3-year warranty

Related RAM® Components

RAM® Vent-Temp™ with Front Dock Connect...

RAM® Rotating Ball Adapter for Phone an...

RAM® Spacer Plate Accessory for Flush M...

RAM® Roto-View™ Adapter Plate

RAM® Tough-Mag™ 88MM Diameter Magnetic ...

Information

Information
Compatibility
Complete Your Solution
Resources

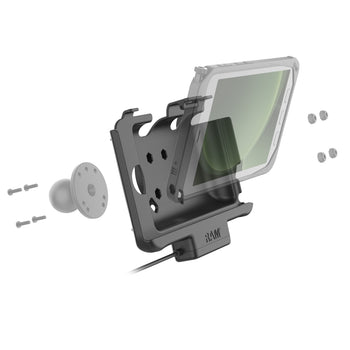

The RAM® USB-C Powered Dock for Tab Active5 & 3 with Hardwire Charger (RAM-HOL-SAM60CP-V7CU) meets the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. This cradle is also compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. The dock delivers power via the USB Type-C female pigtail and Modular 10-30V Hardwire Charger. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern and USB-C cable clamp with zip ties for cable management and retention.

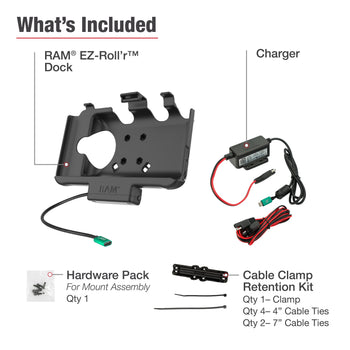

hardware included	(4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (1) Optional Cable Clamp Housing (1) Hardwire Charger
product dimensions	Width: 9.24" Height: 6.34" Depth: 2.57"
hole pattern	4-Hole AMPS: 1.181" x 1.496"
materials	High strength composite
packaging type	Poly Bag
input voltage	5.3-5.4VDC
output voltage	5VDC
power output	500mA
input connector	USB Type-C Female
input cable length	215mm
Warranty	3 year warranty
Weight	0.513 kg
Additional Information	*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0. This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
