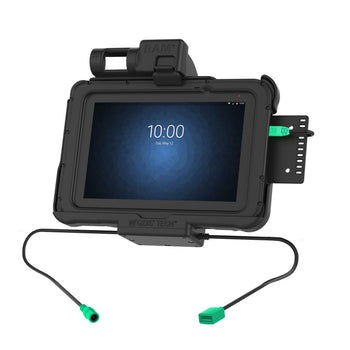

GDS® Power + Data Dock for Zebra ET5x 8.3" & 8.4" Series
Part#:RAM-HOL-ZE10PDU UPC:793442013973 Patented & Pats. Pend.
2 969 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Spring-loaded powered dock featuring GDS® Technology™ for data and charging capabilities for the Zebra ET5x 8.3" & 8.4" series tablets with Rugged Frame via DC 5.5mm power jack and USB Type A connector for adding a peripheral
  • When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked Dock accommodates tablet add-ons such as scanner, hand strap, and PowerPack battery tablet scanning works while tablet is docked

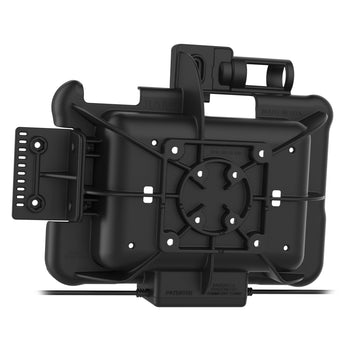

  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty
Related RAM® Products
RAM® Double Socket Arm with Round Ball Plate - C Size Medium
RAM® Double Socket Arm with Round Ball ...
RAM® Double Socket Arm with Round Ball Plate - C Size Long
RAM® Double Socket Arm with Round Ball ...
RAM® Double Socket Arm with Round Ball Plate - C Size Short
RAM® Double Socket Arm with Round Ball ...
GDS® 20-60VDC Input (12VDC Output) Hardwire Charger with Male DC 5.5mm
GDS® 20-60VDC Input (12VDC Output) Hard...
GDS® 10-32VDC Input (12VDC Output) Hardwire Charger with Large DC 5.5mm
GDS® 10-32VDC Input (12VDC Output) Hard...
GDS® Power Supply 60W with Male DC 5.5mm
GDS® Power Supply 60W with Male DC 5.5mm
Featuring GDS® Technology™ for data and charging capabilities, the GDS® Vehicle Dock for Zebra ET5x 8.3" & 8.4" series tablets allows you to connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type-A cable. The dock also allows the tablets scanning function to work through the cutout on the back which also accommodates tablet add-ons such as scanner, rotating hand strap, and PowerPack battery. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, or other handheld device. An included optional accessory bracket will allow you to connect RAM® 2-hole diamond bases for device mounting and features a cable management system.
hardware included

(1) Side bracket for accessory mounting and strain relief
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nyloc Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nyloc Nuts
(8) Small Cable Ties
(2) Large Cable Ties
(1) USB Type A Cable Clamp Housing
hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
input connector

5.5mm DC Connector
output connector

USB 2.0 Type A
peripheral output

500mA
transfer speed

480Mbps
Warranty

3 year warranty
Weight

0.63 kg
Additional information
This dock will support the rotating hand strap but is not compatible with the SG-ET5X-SFSTRAP1-01 hand strap.
