RAM® Form-Fit Powered Dock for Zebra TC53 & TC58
Part#:RAM-HOL-ZE17-2U UPC:793442935619 Patented
Availability Only a few left
1 999 kr
Incl. VAT
In stock — ready to ship
Backed by manufacturer warranty
Exclusive Nordic RAM® distributor
Expert product & mounting support
  • Spring-loaded form-fit dock perfectly secures the Zebra TC53 and TC58 with or without rugged boot provides power through 1.25-meter long DC connector
  • Compatible with the Zebra hand strap accessory
  • Compatible with B and C size RAM® 2-hole diamond bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty
Related RAM® Products
GDS® Modular 10-30V Hardwire Charger with USB-A to DC Cable
GDS® Modular 10-30V Hardwire Charger wi...
GDS® Modular 30-64V Hardwire Charger with USB-A to DC Cable
GDS® Modular 30-64V Hardwire Charger wi...

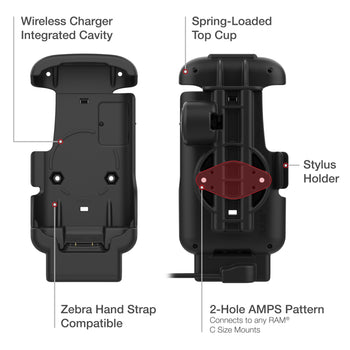

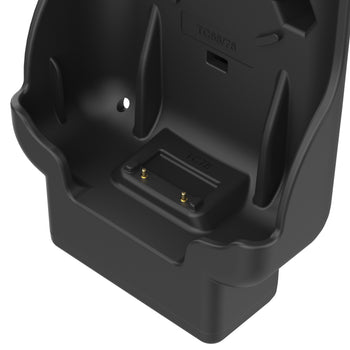

This spring-loaded, form-fit dock allows you to secure and charge the newest models of the Zebra TC5X line, the TC53, and the TC58 with or without the Zebra rugged boot. Features include an integrated stylus holder that snaps your stylus into place while not in use, as well as a standard 1.2m long DC Female cable that delivers charging capabilties. Speaker and mic are fully accessible while the device is docked, and will accommodate the Zebra hand strap. The dock is compatible with RAM® two-hole AMPS pattern diamond bases that will connect to B and C size ball mounts, allowing for a wide variety of mounting options (hardware included).
hardware included

(1) Top Cup Insert
(2) Bottom Cup Insert Options
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nyloc Nuts
hole pattern

2-Hole AMPS: 1.912"
materials

High strength composite
packaging type

Poly Bag
input connector

5.5mm DC Connector
input cable length

1.25 Meters
Warranty

3 year warranty
Weight

0.349 kg
Additional information
Chargers not included. See "Expand Your RAM®" tab to view compatible charging accessories.
