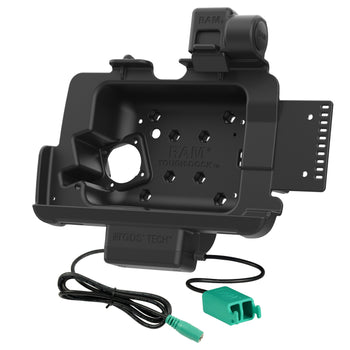

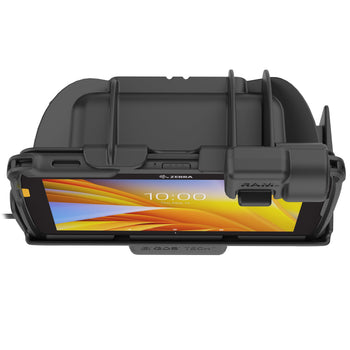

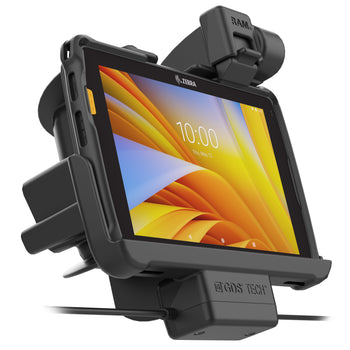

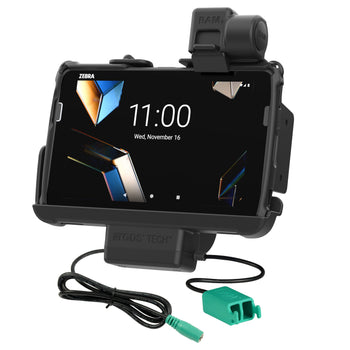

RAM® Tough-Dock™ Power + Dual USB with Latch for Zebra ET4x 8"
RAM® Tough-Dock™ Power + Dual USB with Latch for Zebra ET4x 8"
3 739 kr
Incl. VAT
- Form-fit + dual USB Type-A dock designed specifically for the Zebra ET401 with RAM® Skin™, and ET40 & ET45 8" tablets with Rugged Frame, including a top latch design for frequent docking and undocking of the tablet
- When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked, and a dual USB Type A connector for adding up to 2 peripherals
- Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
- Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
- Backed by a 3-year warranty
Related RAM® Components
The RAM® Tough-Dock™ Power + Dual USB with Latch (RAM-HOL-ZE20PD2NLLU) works with the Zebra ET401 with RAM® Skin™ or ET40 & ET45 8" with Rugged Frame. This dock features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A dual USB Type-A pigtail connector is provided for adding up to two additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any C and D size RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.
| hardware included |
(1) Side bracket for accessory mounting |
| hole pattern |
75 x 75mm VESA |
| materials |
High strength composite |
| packaging type |
Poly Bag |
| input connector |
5.5mm DC Connector |
| input cable length |
1 Meter |
| output connector |
(2) USB 2.0 Type A |
| output cable length |
250mm |
| peripheral output |
900mA (per port) |
| transfer speed |
12Mbps |
| certifications |
RoHS |
| Warranty |
3 year warranty |
| Weight |
0.69 kg |
| Additional Information |
To support the tablet without the Rugged Frame, see RAP-INSERT-ZE20LU. This dock is not compatible with IntelliSkin®. For IntelliSkin® with GDS® Tech™, see RAM-GDS-DOCKNLL-ZE20PD2U.
|
ET40 8" Tablet with Rugged Frame
ET45 8" Tablet with Rugged Frame
ET401 8" Tablet (RAM® Skin™ Required)
