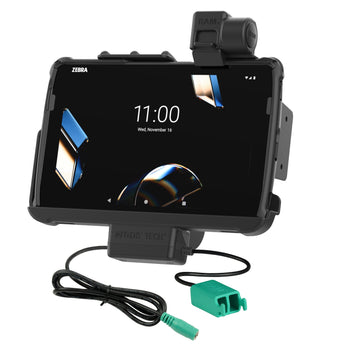

RAM® Tough-Dock™ Power + Dual USB with Latch for Zebra ET4x 10"
Part#:RAM-HOL-ZE21PD2NLLU UPC:793442017131
3 879 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

GDS® Hand Strap Accessory for Zebra ET401 & ET4x 10” Enterprise Tablet
Recommended add-on
GDS® Hand Strap Accessory for Zebra ET401 & ET4x 10” Enterprise Tablet
649 kr
Details
  • Form-fit + dual USB Type-A dock designed specifically for the Zebra ET40 & ET45 10" tablets with Rugged Frame, including a top latch design for frequent docking and undocking of the tablet
  • When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked, and a dual USB Type A connector for adding up to 2 peripherals
  • Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
  • Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
  • Backed by a 3-year warranty
Related RAM® Products
GDS® Hand-Stand™ for Zebra ET401 & ET4x 10” Enterprise Tablet
GDS® Hand-Stand™ for Zebra ET401 & ET4x...
GDS® Hand Strap Accessory for Zebra ET401 & ET4x 10” Enterprise Tablet
GDS® Hand Strap Accessory for Zebra ET4...
GDS® Hand-Stand™ Magnetic Accessory for Zebra ET401 & ET4x 10” Tablet
GDS® Hand-Stand™ Magnetic Accessory for...
GDS® Roto-Mag™ 3-in-1 Grip Handle Accessory for Zebra ET4x 10” Tablet
GDS® Roto-Mag™ 3-in-1 Grip Handle Acces...
RAM® Temp-Right™ Dock Heating Module for Zebra ET4x
RAM® Temp-Right™ Dock Heating Module fo...
RAM® Vent-Temp™ with Back Dock Connection for Round Vents
RAM® Vent-Temp™ with Back Dock Connecti...
The RAM® Tough-Dock™ Power + Dual USB with Latch works with the Zebra ET40 & ET45 10" with Rugged Frame. This dock (RAM-HOL-ZE21PD2NLLU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A dual USB Type-A pigtail connector is provided for adding up to two additional input devices. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories like the GDS® Roto-Mag™ and GDS® Hand-Stand™. To mount this dock, pair any RAM® 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.
hardware included

(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nyloc Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nyloc Nuts
(2) Small Cable Ties
hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
input connector

5.5mm DC Connector
input cable length

1 Meter
output connector

(2) USB 2.0 Type A
output cable length

250mm
peripheral output

900mA (per port)
transfer speed

12Mbps
certifications

RoHS
WEEE
FCC
CE
ICES
UKCA
Warranty

3 year warranty
Weight

0.753 kg
Additional information
To support the tablet without the Rugged Frame, see RAP-INSERT-ZE21LU. This dock is not compatible with IntelliSkin®. For IntelliSkin® with GDS® Tech™, see RAM-GDS-DOCKNLL-ZE21PD2U.
