RAM® Power + Dual USB Dock for Zebra ET8x 2-in-1 Tablet
Part#:RAM-HOL-ZE22PD2U UPC:793442900419 Patented & Pats. Pend.
Availability Only a few left
5 869 kr
Incl. VAT
In stock — ready to ship
Backed by manufacturer warranty
Exclusive Nordic RAM® distributor
Expert product & mounting support
GDS® Roto-Mag™ 3-in-1 Grip Handle Accessory for Zebra ET8x
Recommended add-on
GDS® Roto-Mag™ 3-in-1 Grip Handle Accessory for Zebra ET8x
929 kr
Details
  • Powered dock provides charging capabilities for the Zebra ET8x tablets, with or without Rugged Frame and Friction Hinge Rugged Keyboard via DC 5.5mm power jack Dual USB-A connector for up to 2 peripherals

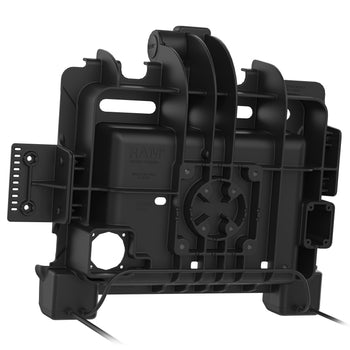

  • Two separate housings on the back of the dock allow for add-on modules such as the NFC Repeater, and temperature modules RAM® Vent-Temp™ and RAM® Temp-Right™

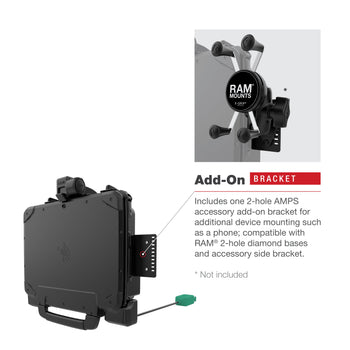

  • Built-in 2-hole accessory mounting plate for additional device mounting such as a phone, scanner, or NFC Repeater
  • Dock accommodates tablet add-ons such as the Zebra Expansion Back, GDS® Roto-Mag™, and GDS® Hand-Stand™ accessories
  • Backed by a 3-year warranty
Related RAM® Products
RAM® Temp-Right™ Dock Heating Module for Zebra ET8x 2-in-1 Tablet
RAM® Temp-Right™ Dock Heating Module fo...
RAM® Vent-Temp™ with Back Dock Connection for Round Vents
RAM® Vent-Temp™ with Back Dock Connecti...
RAM® Vent-Temp™ with Back Dock Connection for Rectangular Vents
RAM® Vent-Temp™ with Back Dock Connecti...
GDS® 20-60VDC Input (12VDC Output) Hardwire Charger with Male DC 5.5mm
GDS® 20-60VDC Input (12VDC Output) Hard...
GDS® 10-32VDC Input (12VDC Output) Hardwire Charger with Large DC 5.5mm
GDS® 10-32VDC Input (12VDC Output) Hard...
GDS® Power Supply 60W with Male DC 5.5mm
GDS® Power Supply 60W with Male DC 5.5mm

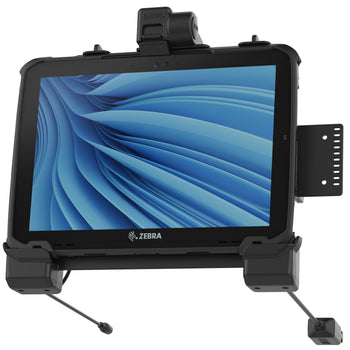

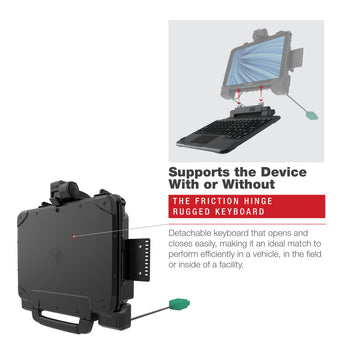

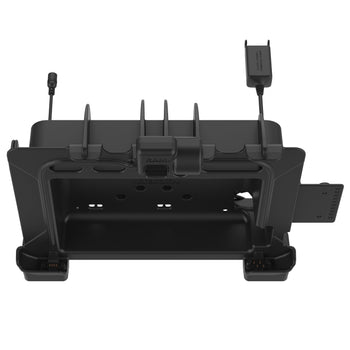

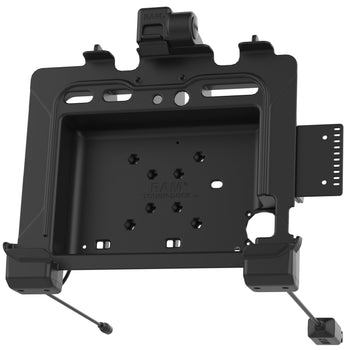

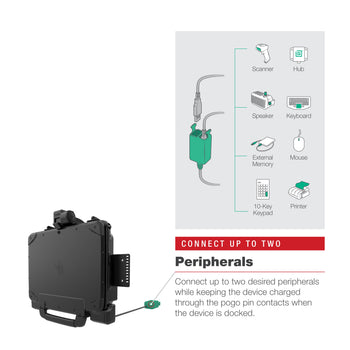

This non-locking power and dual data RAM® Dock (RAM-HOL-ZE22PD2U) features a form-fit design specifically for the Zebra ET8x tablets. Made for versatility out in the field, this dock supports the device with or without the Rugged Frame, and accommodates the optional Friction Hinge Rugged Keyboard. Connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in dual USB Type-A cable. Thoughtfully designed, this dock also allows space for tablet add-ons such as the Zebra Expansion Back, GDS® Roto-Mag™, and GDS® Hand-Stand™ ergonomic accessories. Embrace the weather with options to upgrade your dock with temperature modules. The RAM® Temp-Right™ can be added to regulate heat in extremely cold environments while the RAM® Vent-Temp™ utilizes the vehicle A/C vents to direct hot or cold air to the ET8x. Take the solution a step further by upgrading to an add-on NFC Repeater module that extends the device's internal NFC reader. Pair this with the docks built-in 2-hole mounting plate compatible with RAM® 2-hole diamond base for mounting the NFC Repeater, or any other additional device such as a phone, scanner, or printer.
hardware included

(1) Side bracket for accessory mounting
(4) #8-32 x 5/8" Machine Screws
(2) #8-32 x 1/2" Machine Screws
(6) #8-32 Nyloc Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nyloc Nuts
(8) 4" Zip Ties
(2) 7" Zip Ties
product dimensions

Overall Height: 11.85"
Overall Width: 12.75"
Overall Depth: 4.36"
hole pattern

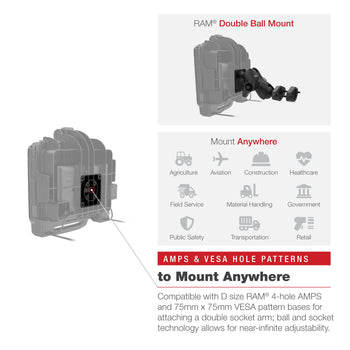

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
input connector

5.5mm DC Connector
input cable length

1 Meter
output connector

(2) USB 2.0 Type A
output cable length

218mm
peripheral output

900mA (per port)
transfer speed

12Mbps
certifications

RoHS
WEEE
FCC
CE
ICES
UKCA
Warranty

3 year warranty
Weight

1.15 kg
