RAM® Powered Dock with USB-C for Zebra HC20 & HC50
Part#:RAM-HOL-ZE39-C-GRY UPC:793442029110
1 529 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

RAM® 7" Pedestal Mount with AMPS Pattern & C-Clamp Base - Gray
Recommended add-on
RAM® 7" Pedestal Mount with AMPS Pattern & C-Clamp Base - Gray
1 999 kr
Details
  • Spring-loaded powered dock featuring USB-C device connection designed for the Zebra HC20 & HC51
  • Back cavity accommodates OEM ergonomic accessories
  • Compatible with RAM® diamond bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty
Related RAM® Products
RAM® 7" Pedestal Mount with AMPS Pattern - Gray
RAM® 7" Pedestal Mount with AMPS Patter...
RAM® 7" Pedestal Mount with AMPS Pattern & C-Clamp Base - Gray
RAM® 7" Pedestal Mount with AMPS Patter...

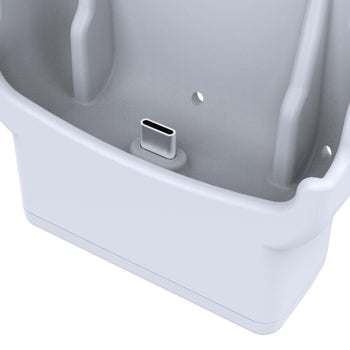

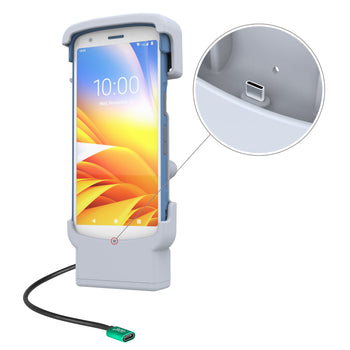

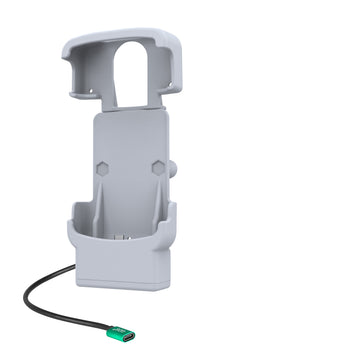

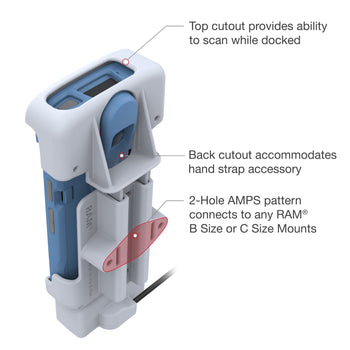

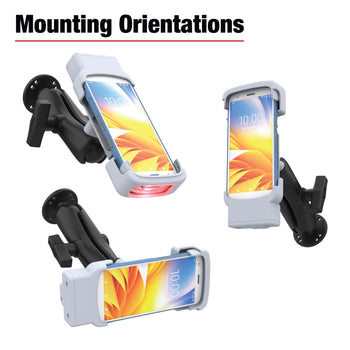

The RAM® Powered Dock with USB-C for Zebra HC20 & HC50 (RAM-HOL-ZE39-GRY) is a rugged, healthcare-grade docking solution purpose-built for demanding medical workflows. Designed with a form-fit cradle, this dock keeps all device buttons accessible and includes a strategic top cutout to enable barcode scanning while docked—ideal for fast-paced patient care environments. Engineered with smooth surfaces and minimal crevices, this dock is easy to clean and disinfect, supporting infection control protocols. It delivers power via a USB-C connection and integrates seamlessly with RAM®'s modular mounting system, offering flexible installation options—including bedside, cart, or wall-mounted orientations. You can even mount it upside down for ergonomic scanning. Built from high-strength composite materials, this dock provides long-lasting durability and performance in any healthcare setting.
hardware included

(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(4) #8-32 Nyloc Nuts
(1) Cable Clamp Kit
hole pattern

2-Hole AMPS: 1.912"
materials

High strength composite
packaging type

Poly Bag
input connector

USB Type-C 2.0
transfer speed

USB 2.0 (480Mbps)
Warranty

3 year warranty
