RAM® Quick-Draw™ Holder with Double U-Bolt Base for Canon BJC-85 & i80
Part#:RAM-VPR-102-1 UPC:793442904820 Patented
Ball Icon C SIZE
Arm Icon MED ARM
2 259 kr
Fast shipping from Halmstad, Sweden
Official RAM® Mounts distributor
Expert support on mounting solutions

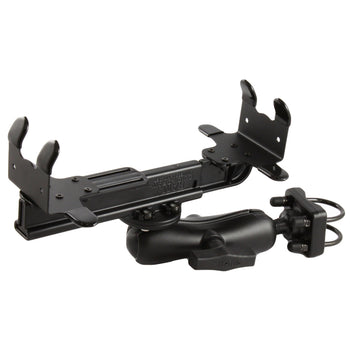

The RAM-VPR-102-1 is designed to hold Canon BJC-85 portable printers. The cradle uses a unique patent pending spring loaded mechanism that holds strong, yet provides easy removal for printer storage. At each end of the spring loaded cradle are small side clamp plates that are designed to fit cleanly around either edge of the printer. Included is a standard length arm and round pipe base, which will connect to any RAM Tele-Pole™ and other poles with a diameter from 1.25" to 1.5".
hardware included

Assembly Hardware
(2) 1/4"-20 U-Bolts for 1.25" - 1.5" Rails
(4) 1/4"-20 Nylock Nuts
(4) Rubber Caps
holder dimensions

Max Height: 1.75"
Width Range: 8" - 14.5"
clamp range

1.25" - 1.5" diameter
socket to socket length

4.66"
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Powder coated steel
Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

1.064 kg

Innehåller

RAM® Quick-Draw™ Holder for Canon BJC-85 & i80 RAM-VPR-102
999 kr
RAM® Double U-Bolt Rail Mount for Larger Rails RAM-101U-235-1
Ball Icon C SIZE
Arm Icon MED ARM
1 299 kr

BJC-85 portable printers

i80 portable printers

i90 portable printers

iP100 photo inkjet printers
