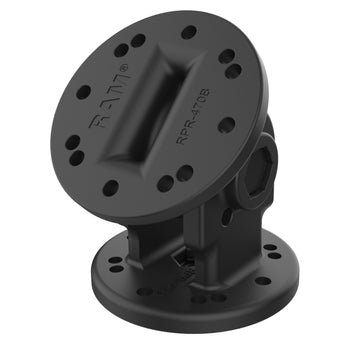

RAM® Single Pivot Mount
Part#:RAP-101-PV4-NKU UPC:793442025440
389 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

RAM® Backing Plate Adapter
Recommended add-on
RAM® Backing Plate Adapter
239 kr
Details
  • Low-profile, drill-down mounting solution for heavy-duty environments
  • Single articulation joint pivots up to 180-degrees barrel nut provide tamper resistance

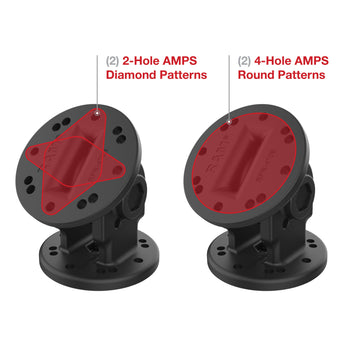

  • Each end features two 2-hole AMPS and two 4-hole AMPS patterns secure your device to one end and the other to your preferred surface
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

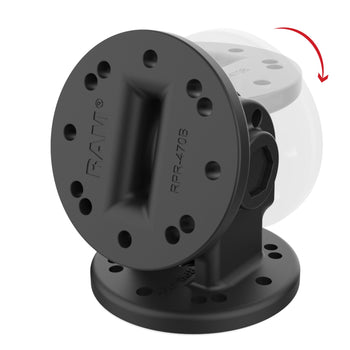

The RAM® Single Pivot Mount (RAP-101-PV4-NKU) is a low-profile, drill-down mounting solution. Each end features 2-hole and 4-hole AMPS patterns to easily install any RAM® holder or GDS® dock and secure the mount to any surface. This solution uses tooth-lock washers to allow users to pivot their device up to 180-degrees and utilizes a barrel nut instead of traditional adjustment knobs to provide tamper resistance, ideal for high-traffic environments.

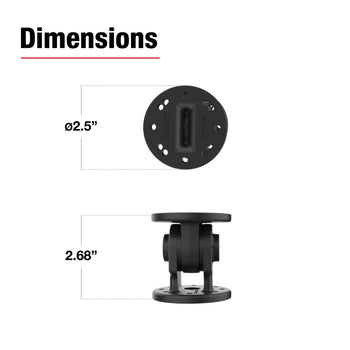

product dimensions

Overall Height: 2.68"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS: 1.912"
plate size

2.5" Diameter
materials

High strength composite
packaging type

Poly Bag
Weight

0.124 kg
