RAM® Twist-Lock™ Suction Cup and Composite Yoke Clamp Mount
Part#:RAP-B-121-224-1U UPC:793442925054 Patented
Ball size B
Arm length Medium
1 119 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

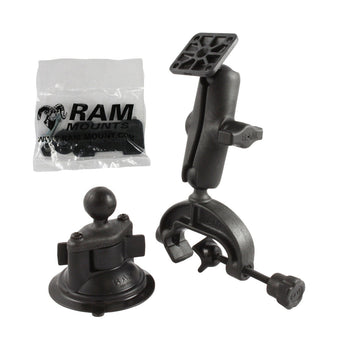

The RAP-B-121-224-1U consists of a yoke clamp base, 3.3" diameter suction cup base, standard length double socket arm and 2" x 1.7" square base that contains the universal AMPs hole pattern. The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount when connected to a rail, the ball sits parallel to the rail. The suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass or non-porous plastic surface.
hardware included

Assembly Hardware
Flat Clamp Hardware Adapter
clamp range

.625" - 1.25"
suction size

3.3" Diameter
socket to socket length

3"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

High strength composite
packaging type

Poly Bag
Weight

0.363 kg
