Retail Packed
RAM® Track Ball™ Double Ball Mount for Humminbird Helix 5
Part#:RAP-B-202-153-354-TRA1 UPC:793442954191
Ball size B
Arm length Medium
Availability Only a few left
659 kr
Incl. VAT
In stock — ready to ship
Backed by manufacturer warranty
Exclusive Nordic RAM® distributor
Expert product & mounting support

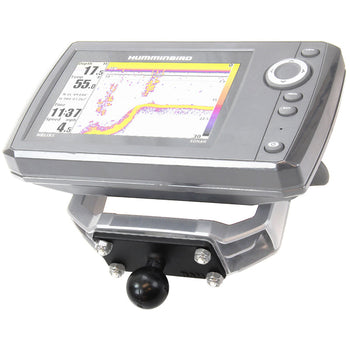

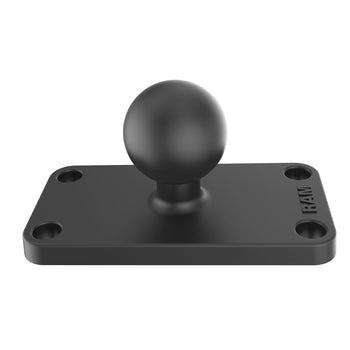

The RAP-B-202-153-354-TRA1 consists of a Track Ball™ base, composite double socket arm and 1.5" x 3" rectangular plate. The rectangular plate contains four holes that will line up with the Humminbird Helix 5. The Track Ball™ will connect to virtually any track system including the RAM Tough-Track™
hardware included

(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
t bolt dimensions

.48" x .95"
socket to socket length

3"
hole pattern

1" x 2.5"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

High strength composite
packaging type

Retail Packed
Weight

0.204 kg
