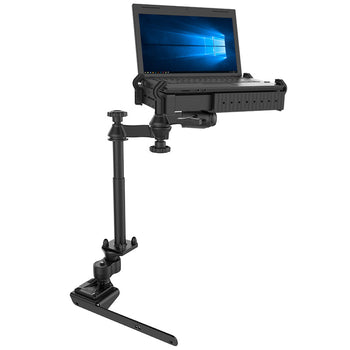

RAM® No-Drill™ Laptop Mount for '12-24 RAM 2500-5500 + More
Part#:RAM-VB-178A-SW1 UPC:793442937255 Patented
Ball Icon C SIZE
Arm Icon ARM
8 039 kr
  • Custom laptop vehicle mount designed specifically for 2012-2024 Ram 2500-5500 trucks

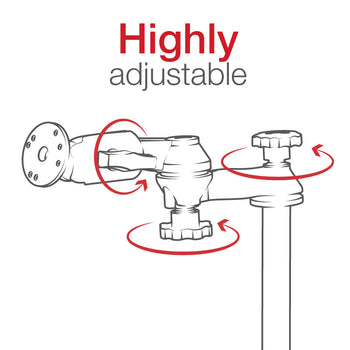

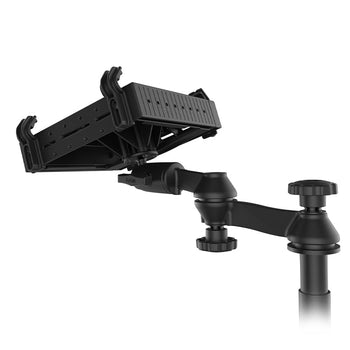

  • Dual articulating swing arms allow for ideal placement universal laptop tray accommodates most laptops

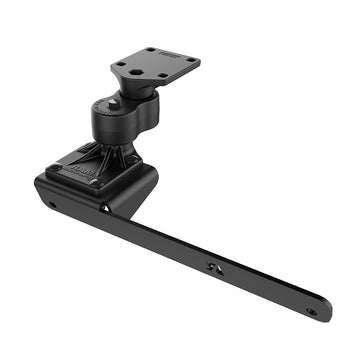

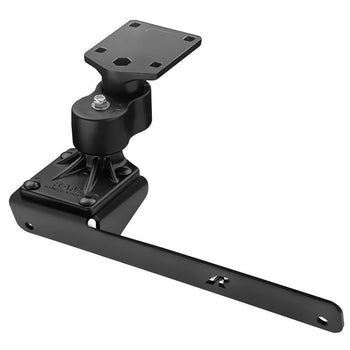

  • Requires no drilling into the vehicle and installs on the passenger side using the existing seat bolts
  • Made of powder-coated steel and marine-grade aluminum
  • Backed by a lifetime warranty

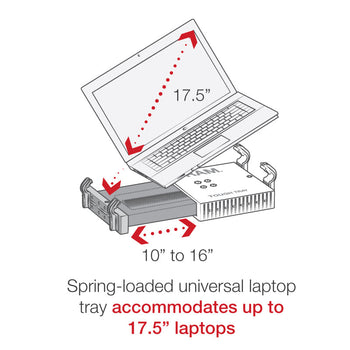

This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature with upper and lower poles that allow you to set your mount to the desired height with the simple turn of a knob. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.
hardware included

Assembly Hardware
(2) M8-1.25 x 60mm Hex Bolts
(2) 3/4" Stand-Offs
(2) 5/16" Flat Washers

tray dimensions

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

hole pattern

Seat Bolt Distance: 13.25" center to center

ball size

C Size (1.5")

materials

Powder coated steel
Marine grade-aluminum
High strength composite

packaging type

Box

Weight

7.258 kg

Additional Information
Low profile design limits intrusion on passenger side leg space. Base will not interfere with levers or factory installed console or 4WD lever. Base designed to accommodate trucks with power take-off (PTO.)

1500 (2012-2018)

1500 Classic (2019-2023)

2500 - 5500 (2012-2024)
