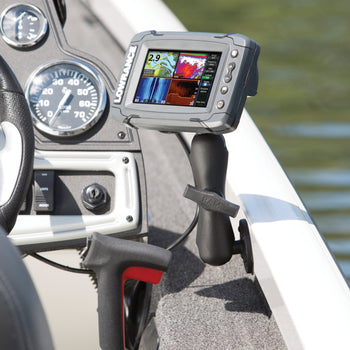

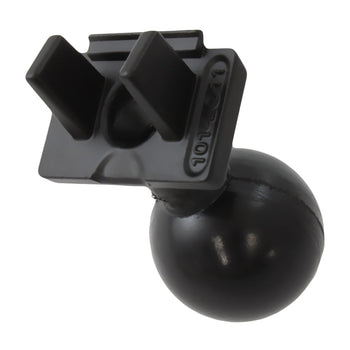

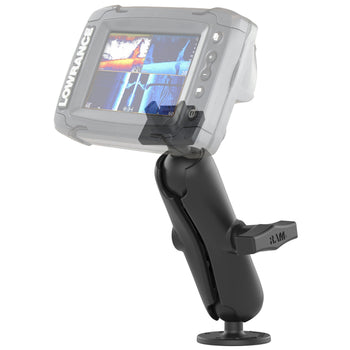

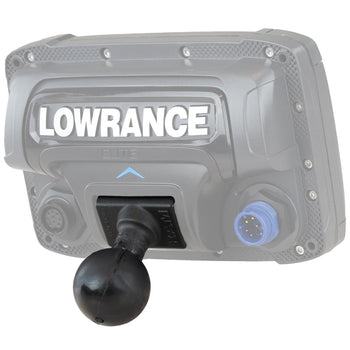

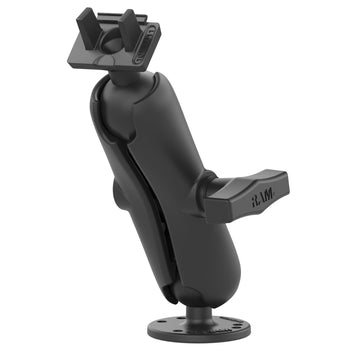

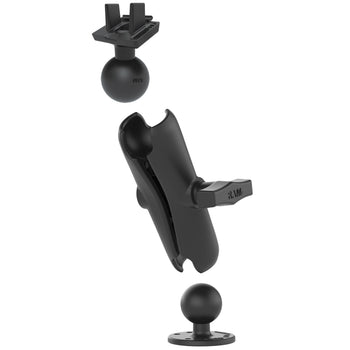

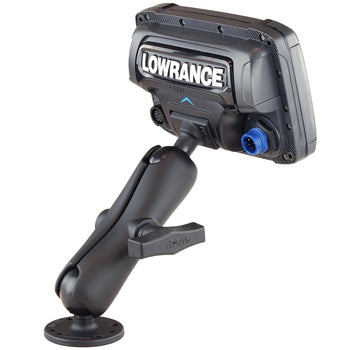

The RAM-101-LO11 consists of a 2.5" diameter round base that contains the universal AMPS hole pattern, 6 inch double socket arm and adapter base that inserts directly to the back of Lowrance Elite-5, Elite-5 Ti, Elite-7 Ti/Ti², HOOK-3, HOOK-4, HOOK-5 and MARK-5 Fishfinders. The adapter serves as a quick release mechanism, allowing you to remove or transfer your Fishfinder in seconds. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm; this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
product dimensions |
Overall Height: 7.35" |
socket to socket length |
4.66" |
hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
plate size |
2.5" Diameter |
ball size |
C Size (1.5") |
weight capacity |
Standard Use: 4 lbs |
materials |
Marine-grade aluminum |
packaging type |
Retail Box |
Weight |
0.553 kg |
Additional Information |
This product is not compatible with the standard Lowrance Elite-7.
|
Elite-5
Elite-5 Ti
Elite-7 Ti
Elite-7 Ti²
HOOK-3
HOOK-4
HOOK-5
MARK-5
GO5 XSE
