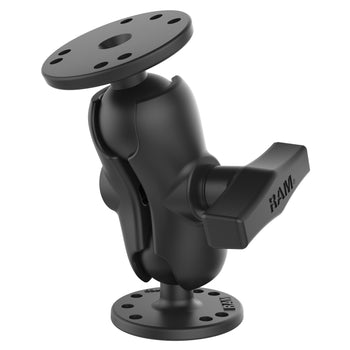

RAM® Universal Double Ball Mount with Two Round Plates - C Size Short

Standard

RAM® Universal Double Ball Mount with Two Round Plates - C Size Short

Part#:RAM-101U-B UPC:793442010125

RAM® Universal Double Ball Mount with Two Round Plates - C Size Short

Part#:RAM-101U-B UPC:793442010125

Ball Size

B Size C Size

Arm Length

Short Arm Medium Arm Long Arm

Size Guide

Size	Ball Diameter	Max Load	Best For
A	0.56″ (14.3 mm)	0.5 lb (0.2 kg)	Action cameras and other ultra-light devices
B	1″ (25.4 mm)	2 lbs (0.9 kg)	Phones, GPS units, and small tablets — the most common size
C	1.5″ (38.1 mm)	4 lbs (1.8 kg)	Large tablets, fish finders, and rougher rides
D	2.25″ (57.2 mm)	6 lbs (2.7 kg)	Rugged tablets, laptops, and heavy equipment
E	3.38″ (85.9 mm)	15 lbs (6.8 kg)	Large displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1″ B ball, while RAM-D-201 uses a 2.25″ D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.

		A Size	B Size	C Size	D Size	E Size
Short	Overall Length	N/A	2.42″ (6.1 cm)	3.56″ (9.0 cm)	5.69″ (14.5 cm)	5.69″ (14.5 cm)
Short	Socket-to-Socket Length	N/A	1.75″ (4.4 cm)	2.5″ (6.4 cm)	4.66″ (11.8 cm)	4.66″ (11.8 cm)
Medium	Overall Length	2.42″ (6.1 cm)	3.73″ (9.5 cm)	5.69″ (14.5 cm)	8.44″ (21.4 cm)	12.63″ (32.1 cm)
Medium	Socket-to-Socket Length	1.75″ (4.4 cm)	3″ (7.6 cm)	4.66″ (11.8 cm)	6.88″ (17.5 cm)	9.88″ (25.1 cm)
Long	Overall Length	3.56″ (9.0 cm)	6″ (15.2 cm)	9.13″ (23.2 cm)	12.98″ (33.0 cm)	N/A
Long	Socket-to-Socket Length	3.12″ (7.9 cm)	5.31″ (13.5 cm)	8″ (20.3 cm)	11.41″ (29.0 cm)	N/A

1 059 kr

Incl. VAT

In stock — ready to ship

Backed by manufacturer warranty

Exclusive Nordic RAM® distributor

Expert product & mounting support

Recommended add-on

RAM® Pin-Lock™ Security Knob for C Size Socket Arms

229 kr

Details

Drill-down mounting solution choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders

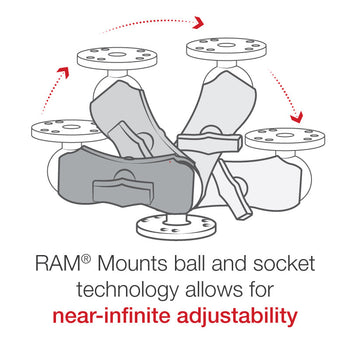

Includes two round ball bases and C size short length double socket arm ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Related RAM® Products

RAM® Add-A-Ball™ Accessory Ball for C S...

RAM® Pin-Lock™ Security Knob for C Size...

RAM® Key Lock Knob with Steel Insert fo...

RAM® Key Lock Knob with Brass Insert fo...

Information

Information
Resources

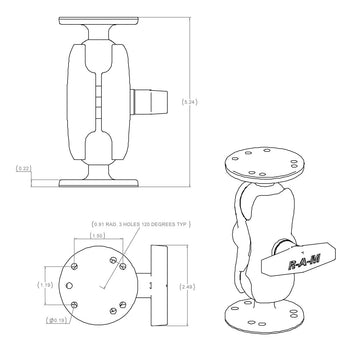

The RAM-101U-B consists of a short double socket arm and two 2.5" diameter round bases with the universal AMPS hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. High quality materials insure your device is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your device.

product dimensions	Overall Height: 5.225"
socket to socket length	2.5"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	0.413 kg

Kit Components
