UNPKD RAM MOUNT HUMMINBIRD APELCO 97
Part#:RAM-107U UPC:793442000119
Ball Icon C SIZE
Arm Icon MED ARM
1 199 kr

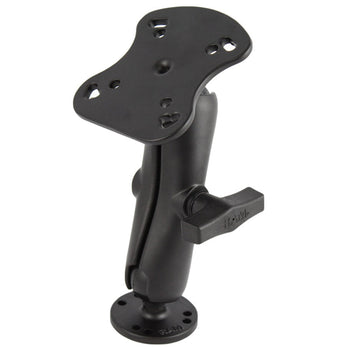

The RAM-107U consists of a double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and connecting Humminbird/Apelco marine adapter base. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; thus allowing for almost infinite adjustment and perfect viewing angles. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
The RAM-107U consists of a double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and connecting Humminbird/Apelco marine adapter base. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; thus allowing for almost infinite adjustment and perfect viewing angles. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
product dimensions

Overall Height: 7.35"
socket to socket length

4.66"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

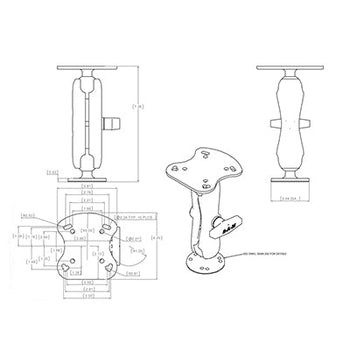

See Drawing
plate size

Top Plate: 4.25" x 3.81"
Round Plate: 2.5" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

0.59 kg

700 Series

600 Series

500 Series

300 Series

100 Series

Matrix Series (excluding Matrix 97)

Elite-5

Elite-5M

Elite-5X

Apelco Fishfinder with matching hole pattern
