RAM® Universal Marine Electronic Mount for Square Posts up to 2" Wide
RAM® Universal Marine Electronic Mount for Square Posts up to 2" Wide
C SIZE
MED ARM
1 499 kr

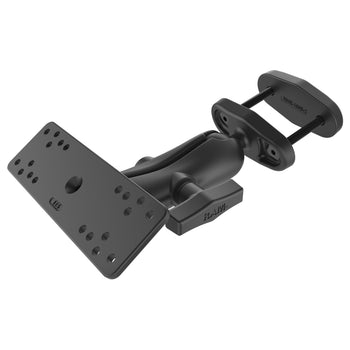

The RAM-111-247-2U with clamp base, consists of the 1.5 inch diameter ball and socket system with RAM universal rectangular 6.25 x 2 inch base. This mount is designed to be a universal mounting solution for large and heavy electronic devices, including GPS, CB Radios, Ham Radios and more. The hole pattern found on the rectangular base will connect to a large variety of third party cradle, gimbal brackets and mounts. The mounting base is a perfect solution for mounting to the cabin frame work on a forklift, or any other square post up to 2 inches square.
| hardware included |
(2) 5/16"-18 x 3" Machine Screws |
| clamp range |
2" max width |
| socket to socket length |
4.66" |
| hole pattern |
See Drawing |
| plate size |
6.25" x 2" |
| ball size |
C Size (1.5") |
| weight capacity |
Standard Use: 4 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
2.268 kg |
| Additional Information |
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
|
