RAM® Universal Marine Electronic Ball - C Size
RAM® Universal Marine Electronic Ball - C Size
C SIZE
ARM
429 kr
- Universal marine electronic plate includes a variety of pre-drilled holes that match a wide range of devices
- Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty

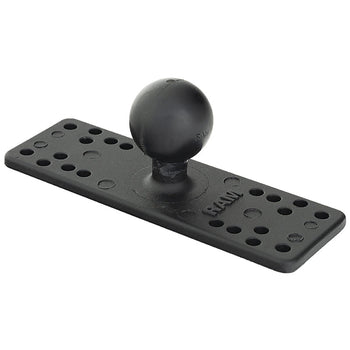

The RAM-111BU consists of a C size 1.5" rubber ball connected at right angles to a flat 6.25 x 2" rectangular plate. The plate contains different combinations of pre-drilled holes that will match many electronic devices and mounts, including marine GPS, CB radios, Ham radios, gimbal brackets, and more.
| hole pattern |

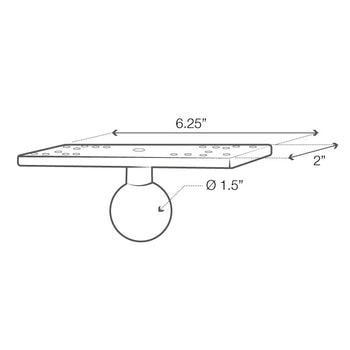

See Drawing |
| plate size |
6.25" x 2" |
| ball size |
C Size (1.5") |
| weight capacity |
Standard Use: 4 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
0.186 kg |
| Additional Information |
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
|
ECHOMAP UHD2 5"
ECHOMAP UHD2 7"
GPSMAP 722xs
GPSMAP 723
GPSMAP 723xsv
GPSMAP 742xs
GPSMAP 743
GPSMAP 743xsv
Striker Plus 5cv
Striker Vivid 5cv
Striker Plus 7cv
Striker Plus 7sv
Striker Vivid 5cv
Striker Vivid 7cv
Striker Vivid 7sv
Fishfinders and GPS Chartplotters
Elite FS 7
HDS Carbon 7
HDS LIVE 7
Hook Reveal 7 Series
Hook Reveal 9 Series
Fishfinders and GPS Chartplotters
Fishfinders and GPS Chartplotters
Fishfinders and GPS Chartplotters
