UNPKD RAM MARINE ELETRONICS BASE 6 1/4
Part#:RAM-B-111BU UPC:793442111112
Ball Icon B SIZE
Arm Icon ARM
359 kr

The RAM-B-111BU consists 1" diameter rubber ball connected to a flat 6.25" x 2" rectangle base. The base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

The RAM-B-111BU consists 1" diameter rubber ball connected to a flat 6.25" x 2" rectangle base. The base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

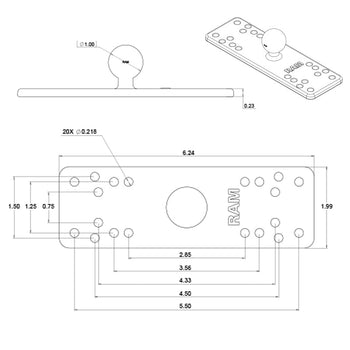

hole pattern

See Drawing

plate size

6.25" x 2"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.145 kg

Additional Information
This plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

GPSMAP 162

GPSMAP 168

GPSMAP 175

GPSMAP 180

GPSMAP 180C

GPSMAP 182

GPSMAP 185

GPSMAP 188

GPSMAP 232

GPSMAP 238

Striker 5 Series

Striker Plus 5cv

Striker Vivid 5cv
