UNPKD RAM MOUNT W/ 2 QTY 6 1/4 BASE
Part#:RAM-133AU UPC:793442000591
Ball Icon C SIZE
Arm Icon MED ARM
1 429 kr

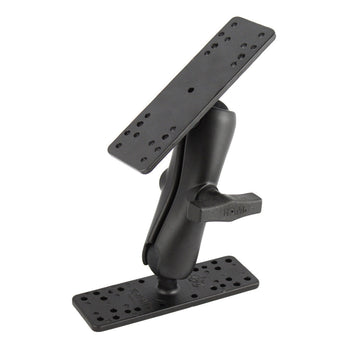

The RAM-133A mount consists of the 1.5 inch diameter ball and socket system with universal 6.25 x 2 inch rectangular base ends. The bases have many different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios and Gimbal Brackets.

The RAM-133A mount consists of the 1.5 inch diameter ball and socket system with universal 6.25 x 2 inch rectangular base ends. The bases have many different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios and Gimbal Brackets.
product dimensions

Overall Height: 7.35"

socket to socket length

4.66"

hole pattern

See Drawing

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.662 kg

Additional Information
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
