RAM® Double Socket Arm - C Size Medium

Standard

Retail Packed

RAM® Double Socket Arm - C Size Medium

Part#:RAM-201 UPC:793442002014

RAM-201:RAM-201_2:RAM® Double Socket Arm - C Size Medium

RAM-201:RAM-201_3:RAM® Double Socket Arm - C Size Medium

RAM® Double Socket Arm - C Size Medium

Part#:RAM-201 UPC:793442002014

Ball Size

B Size C Size D Size E Size

Arm Length

Short Arm Medium Arm Long Arm

Size Guide

Size	Ball Diameter	Max Load	Best For
A	0.56″ (14.3 mm)	0.5 lb (0.2 kg)	Action cameras and other ultra-light devices
B	1″ (25.4 mm)	2 lbs (0.9 kg)	Phones, GPS units, and small tablets — the most common size
C	1.5″ (38.1 mm)	4 lbs (1.8 kg)	Large tablets, fish finders, and rougher rides
D	2.25″ (57.2 mm)	6 lbs (2.7 kg)	Rugged tablets, laptops, and heavy equipment
E	3.38″ (85.9 mm)	15 lbs (6.8 kg)	Large displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1″ B ball, while RAM-D-201 uses a 2.25″ D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.

		A Size	B Size	C Size	D Size	E Size
Short	Overall Length	N/A	2.42″ (6.1 cm)	3.56″ (9.0 cm)	5.69″ (14.5 cm)	5.69″ (14.5 cm)
Short	Socket-to-Socket Length	N/A	1.75″ (4.4 cm)	2.5″ (6.4 cm)	4.66″ (11.8 cm)	4.66″ (11.8 cm)
Medium	Overall Length	2.42″ (6.1 cm)	3.73″ (9.5 cm)	5.69″ (14.5 cm)	8.44″ (21.4 cm)	12.63″ (32.1 cm)
Medium	Socket-to-Socket Length	1.75″ (4.4 cm)	3″ (7.6 cm)	4.66″ (11.8 cm)	6.88″ (17.5 cm)	9.88″ (25.1 cm)
Long	Overall Length	3.56″ (9.0 cm)	6″ (15.2 cm)	9.13″ (23.2 cm)	12.98″ (33.0 cm)	N/A
Long	Socket-to-Socket Length	3.12″ (7.9 cm)	5.31″ (13.5 cm)	8″ (20.3 cm)	11.41″ (29.0 cm)	N/A

529 kr

Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

Recommended add-on

RAM® Round Plate with Ball - C Size

319 kr

Details

Medium length double socket arm has an overall length of 5.69" and a socket-to-socket length of 4.66"

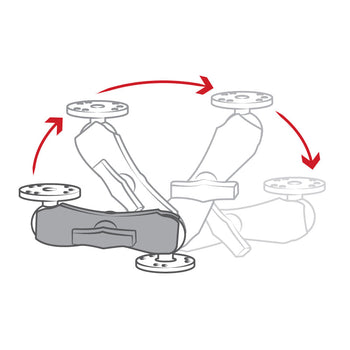

Attaches to any C size RAM® ball component, including mounting bases and device holders double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Related RAM® Products

RAM® Add-A-Ball™ Accessory Ball for C S...

RAM® Pin-Lock™ Security Knob for C Size...

RAM® Key Lock Knob with Steel Insert fo...

RAM® Key Lock Knob with Brass Insert fo...

Information

Information
Resources

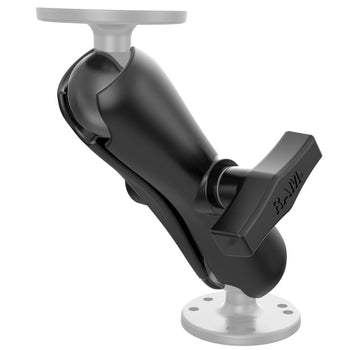

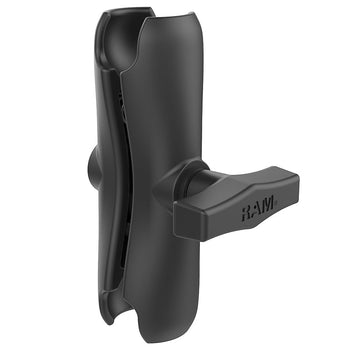

The RAM® Double Socket Arm - C Size Medium (RAM-201) serves as the “socket” in the RAM® patented ball-and-socket mounting system. This double socket arm connects to any two C size ball adapters or bases. A spring inside the arm keeps one socket open, making it easy to attach to a ball. With an overall length of 5.69", the arm features an easy-to-adjust knob that provides near-infinite positioning.

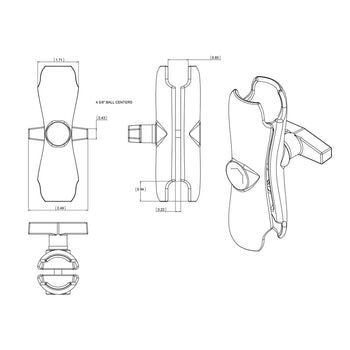

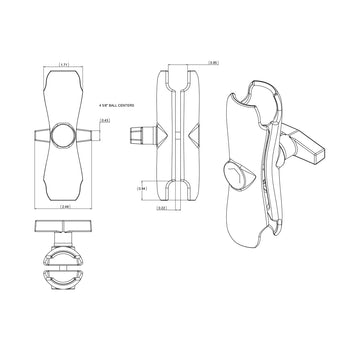

product dimensions	Overall Length: 5.69"
socket to socket length	4.66"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Marine-grade aluminum
packaging type	Retail Packed
Warranty	Lifetime
Weight	0.34 kg
