RAM® Drill-Down Double Ball Mount for Humminbird Helix 5 - Medium
RAM® Drill-Down Double Ball Mount for Humminbird Helix 5 - Medium
C SIZE
MED ARM
999 kr
Incl. VAT

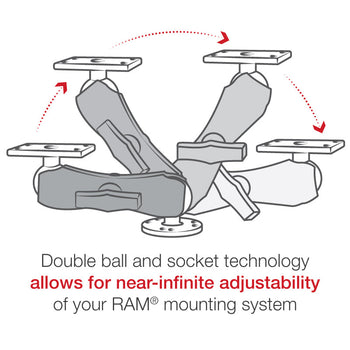

- Complete flat surface, drill-down mounting solution for the Humminbird Helix 5 RAM® Mounts ball and socket technology allows for near-infinite adjustability
- Includes 2.5" round base with C size 1.5" rubber ball, medium length C size double socket arm, and a 1" x 2.5" rectangle base with C size 1.5" rubber ball that connects to your Humminbird Helix 5
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
Related RAM® Components

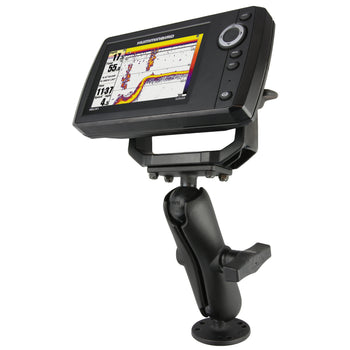

The RAM® Drill-Down Double Ball Mount for Humminbird Helix 5 (RAM-202-153-202) is a rugged, adjustable mounting solution designed for reliable performance on the water. Constructed from powder-coated, marine-grade aluminum, this mount includes a C size medium-length double socket arm, a 2.5" round base with the universal AMPS hole pattern for drill-down installation, and a 1.5" x 3" rectangular ball adapter for the Humminbird Helix 5. Its overmolded rubber ball helps absorb shock and vibration for a smoother, more secure experience.

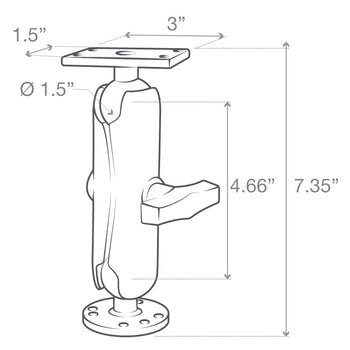

| product dimensions |
Overall Height: 7.35" |
| socket to socket length |
4.66" |
| hole pattern |
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" Diameter |
| plate size |
Top Plate: 1.5" x 3" |
| ball size |
C Size (1.5") |
| weight capacity |
Standard Use: 4 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Retail Packed |
| Weight |
0.59 kg |
Consists of
HELIX 5 DI
HELIX 5 DI GPS
HELIX 5 SI GPS
HELIX 5 SI GPS KVD
HELIX 5 SONAR GPS
HELIX 5 SONAR
HELIX 5 XD GPS
