RAM BASE 2 X 4 W/ 1 1/2 BALL & ROUND
Part#:RAM-202-24-202U UPC:793442948589
Ball Icon C SIZE
Arm Icon MED ARM
1 199 kr

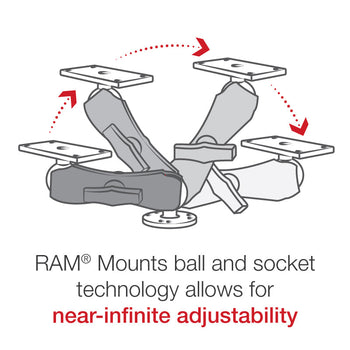

  • Complete flat surface, drill-down mounting solution for the Humminbird Helix 7; RAM® Mounts ball and socket technology allows for near-infinite adjustability

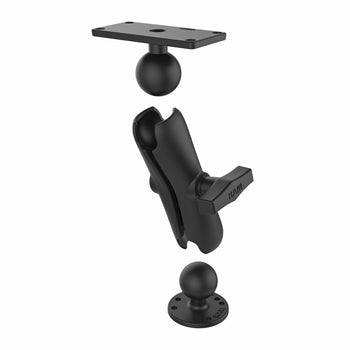

  • Includes 2.5" round base with C size 1.5" rubber ball, medium length C size double socket arm, and a 1.5" x 3.5" rectangle base with C size 1.5" rubber ball that connects to your Humminbird Helix 7
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty

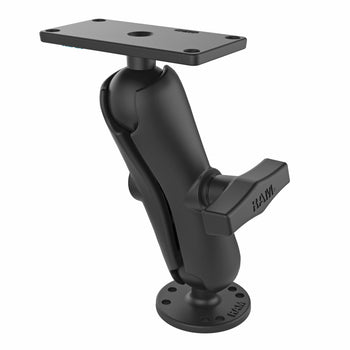

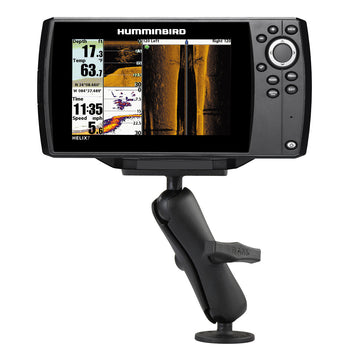

The RAM-202-24-202U powder-coated, marine-grade aluminum Humminbird Helix 7 mount consists of a medium length double socket arm, a 2.5" diameter round base with a 1.5" C size ball, and one 1.5" x 3.5" rectangular plate with a 1.5" C size ball. The 1.5" x 3.5" rectangular plate contains a 4-hole pattern. Rubber ball and socket technology provides shock and vibration damping, and allows for near-infinite adjustability so you can position your device at the perfect viewing angle. Compatible with the Humminbird Helix 7.

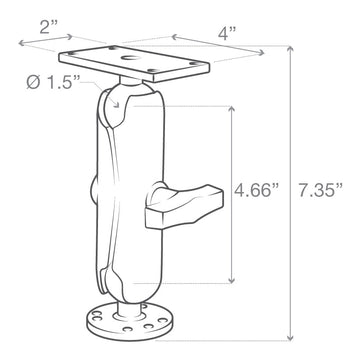

product dimensions

Overall Height: 7.35"

socket to socket length


hole pattern

Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree 1.812" Diameter

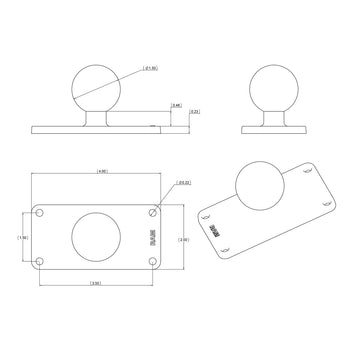

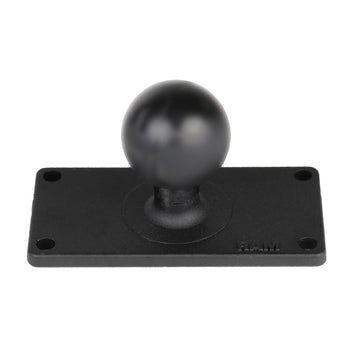

Rectangular Plate: 1.5" x 3.5"

plate size

Top Plate: 2" x 4"
Bottom Plate: 2.5" Diameter

ball size

C Size (1.5")

weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs


Marine-grade aluminum

packaging type

Poly Bag


0.572 kg

Helix 7
