UNPKD RAM MARINE ELECTRONICS SHORT ARM
Part#:RAM-B-111U-A UPC:793442904516
Ball Icon B SIZE
Arm Icon SHORT ARM
799 kr
  • Complete flat surface, drill-down mounting solution with an overall height of 3.75"
  • RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty

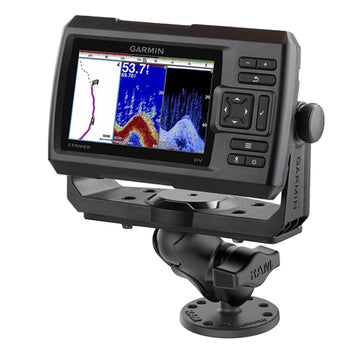

The RAM-B-111U-A consists of a short double socket arm, 2.5" diameter round base and 6.25" x 2" rectangle base. The round base contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.

The RAM-B-111U-A consists of a short double socket arm, 2.5" diameter round base and 6.25" x 2" rectangle base. The round base contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
product dimensions

Overall Height: 3.75"

socket to socket length

1.75"

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

plate size

Top Plate: 6.25" x 2.5"
Bottom Plate: 2.5" Diameter

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.281 kg

Additional Information
This plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

GPSMAP 162

GPSMAP 168

GPSMAP 175

GPSMAP 180

GPSMAP 180C

GPSMAP 182

GPSMAP 185

GPSMAP 188

GPSMAP 232

GPSMAP 238

Striker 5 Series

Striker Plus 5cv

Striker Vivid 5cv
