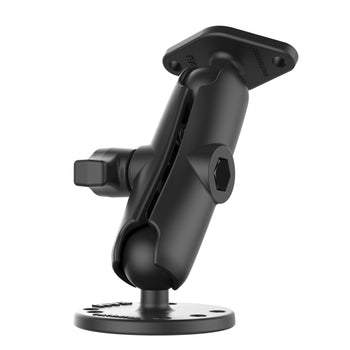

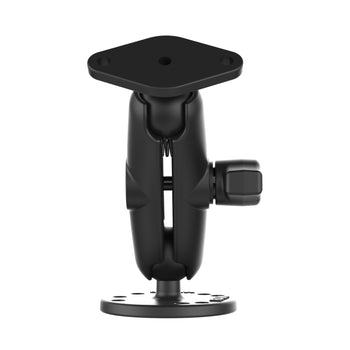

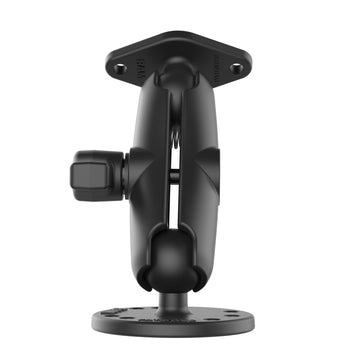

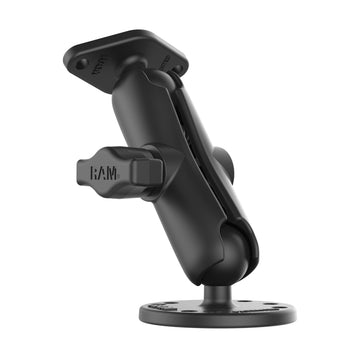

RAM® Double Ball Drill-Down Mount with Diamond Plate - Medium
RAM® Double Ball Drill-Down Mount with Diamond Plate - Medium
Arm Length
Ball size
B
589 kr
Incl. VAT
On request
This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.
Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.
- Drill-down mounting solution diamond plate features 2-hole AMPS hole pattern for attachment to compatible device holders

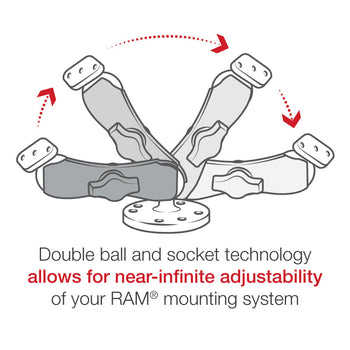

- Includes round ball base, diamond ball base, and B size medium length double socket arm ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
- Backed by a lifetime warranty
Related RAM® Products
The RAM® Double Ball Drill-Down Mount with Diamond Plate (RAM-B-138U) is a complete mounting kit for lightweight devices. This bundles comes with a 2.5" diameter round base that contains the universal 2-hole and 4-hole AMPS pattern, double socket arm, and diamond base adapter with 2-hole AMPS pattern. Built with B size components, this mount features the 1" diameter patented RAM® rubber ball and socket system. The double socket arm provides adjustment points at both ends for near-infinite positioning. The rubber ball and socket design also helps dampen shock and vibration, helping extend the life of your device. The hole pattern found on the diamond base adapter is compatible with most RAM® device holders.

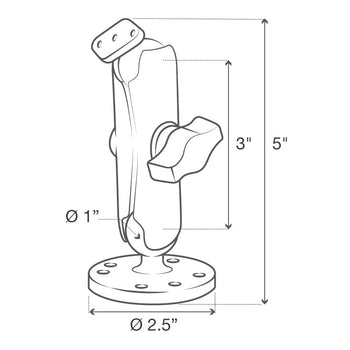

| product dimensions |
Overall Height: 5" |
| socket to socket length |
3" |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| plate size |
Round Plate: 2.5" Diameter |
| ball size |
B Size (1") |
| weight capacity |
Standard Use: 2 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
0.234 kg |
