RAM® Double Ball Drill-Down Mount with Diamond Plate & Backer Plate
Part#:RAM-B-138U-C-INT3 UPC:793442801976
Ball size B
Arm length Long
1 079 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

Related RAM® Products
RAM® Pin-Lock™ Security Knob for B Size Socket Arms
RAM® Pin-Lock™ Security Knob for B Size...
RAM® Key Lock Knob with Steel Insert for B Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for B Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...
RAM® Rotating Ball Adapter for Phone and Handheld Holders - B Size
RAM® Rotating Ball Adapter for Phone an...
RAM® Roto-View™ Adapter Plate
RAM® Roto-View™ Adapter Plate
RAM® EZY-Mount™ Quick Release Adapter Kit
RAM® EZY-Mount™ Quick Release Adapter Kit

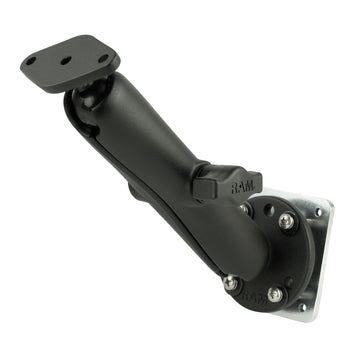

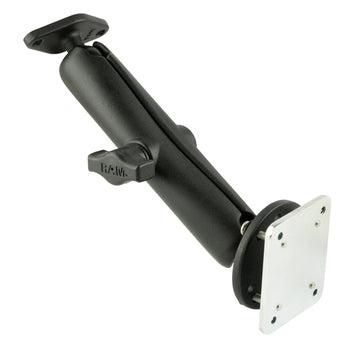

The RAM-B-138U-C-INT3 consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, long double socket arm, diamond base adapter and backer plate. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.
hardware included

(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
product dimensions

Overall Height: 7.3125"
socket to socket length

5.31"
hole pattern

Diamond Plate: 2-Hole AMPS: 1.912"
Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Steel
Marine-grade aluminum
packaging type

Poly Bag
Weight

0.451 kg
