RAM® Handlebar U-Bolt Double Ball Mount with Rectangle AMPS Plate
Part#:RAM-B-149Z-C-347U UPC:793442939594 Patented
Ball Icon B SIZE
Arm Icon LONG ARM
1 019 kr

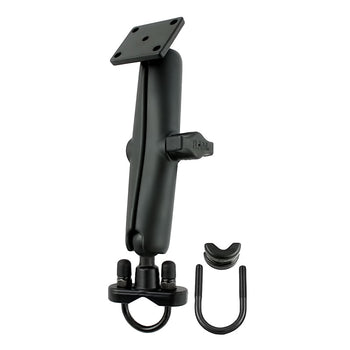

The RAM-B-149Z-C-347U consists of a zinc coated u-bolt base, LONG double socket arm and square adapter base that contains the universal AMPS hole pattern. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The square adapter base contains four pre-drilled holes at each corner, making the universal 1.5 x 1.188 (hole spacing) AMPS hole pattern. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm this allowing for almost infinite adjustment and perfect viewing angles.
hardware included

(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

5.31"

hole pattern

4-Hole AMPS: 1.181" x 1.496"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.395 kg

Består av

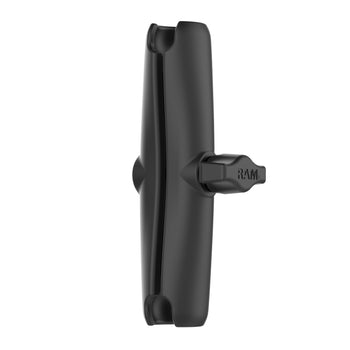

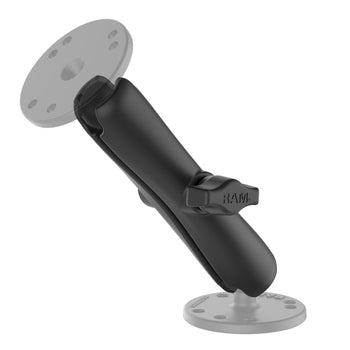

RAM® Double Socket Arm - B Size Long RAM-B-201U-C
Ball Icon B SIZE
Arm Icon LONG ARM
529 kr

dezl OTR1000

GPSMAP 276Cx

Tread

zumo 390LM

zumo 396 LMT-S

zumo 400

zumo 450

zumo 500

zumo 550

zumo 590

zumo 595LM

zumo 660

zumo 665

zumo XT

zumo XT2

TRX7

TRX7 CS

Tech Zumo 590

Tech Zumo 660

Tech Zumo 665

Rider 2

Urban Rider

Tech Voyager Pro
