UNPKD. RAM 2 X 1.7 BASE AMPS HOLE PAT
Part#:RAM-B-347U UPC:793442907623
Ball Icon B SIZE
Arm Icon ARM
189 kr
  • 2" x 1.7" square ball base features industry-standard AMPS hole pattern with four pre-drilled holes at each corner
  • Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

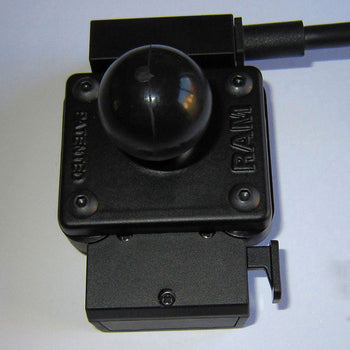

The RAM-B-347U base consists of a B size 1" diameter rubber ball connected to a 2" x 1.7" square base. The base has four pre-drilled holes at each corner, using the universal AMPS hole pattern.

The RAM-B-347U base consists of a B size 1" diameter rubber ball connected to a 2" x 1.7" square base. The base has four pre-drilled holes at each corner, using the universal AMPS hole pattern.

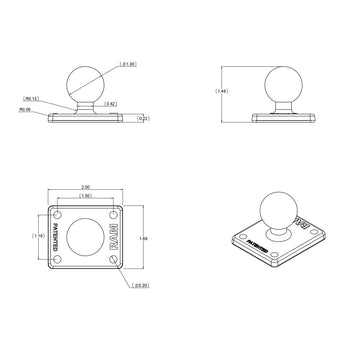

hole pattern

4-Hole AMPS: 1.181" x 1.496"

thread pitch

1/4"-20

plate size

2" X 1.7"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.059 kg

dezl OTR1000

GPSMAP 276Cx

Tread

zumo 390LM

zumo 396 LMT-S

zumo 400

zumo 450

zumo 500

zumo 550

zumo 590

zumo 595LM

zumo 660

zumo 665

zumo XT

TRX7

TRX7 CS

Tech Zumo 590

Tech Zumo 660

Tech Zumo 665

Rider 2

Urban Rider

Tech Voyager Pro
