UNPKD RAM GLARE SHIELD CLAMP SYSTEM
Part#:RAM-B-177-347U UPC:793442916892 Patented
Ball Icon B SIZE
Arm Icon SHORT ARM
1 019 kr

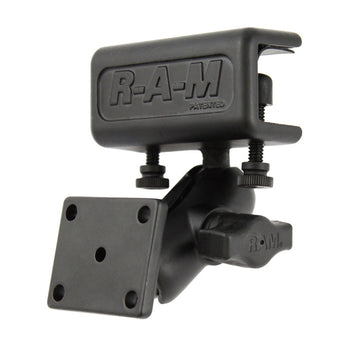

The RAM-B-177-347U consists of a glare shield clamp base, short double socket arm and 2" x 1.7" rectangular base that contains the universal AMPs hole pattern. This mount is designed to mount to the lip edge of a flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diameter arm socket and connection plates to create the perfect mount for your application. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

The RAM-B-177-347U consists of a glare shield clamp base, short double socket arm and 2" x 1.7" rectangular base that contains the universal AMPs hole pattern. This mount is designed to mount to the lip edge of a flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diameter arm socket and connection plates to create the perfect mount for your application. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.
hardware included

(2) 1/4"-20 x 1.25" Composite Thumb Screws
(2) Rubber Caps
(1) 1.93" x 3.06" Rubber Adhesive Pad

clamp range

.625" max

socket to socket length

1.75"

hole pattern

4-Hole AMPS: 1.181" x 1.496"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.281 kg

dezl OTR1000

GPSMAP 276Cx

zumo 390LM

zumo 396 LMT-S

zumo 400

zumo 450

zumo 500

zumo 550

zumo 590

zumo 595LM

zumo 660

zumo 665

zumo XT

TRX7

TRX7 CS

Tech Zumo 590

Tech Zumo 660

Tech Zumo 665

Rider 2

Urban Rider

Tech Voyager Pro

Tech Voyager Pro
