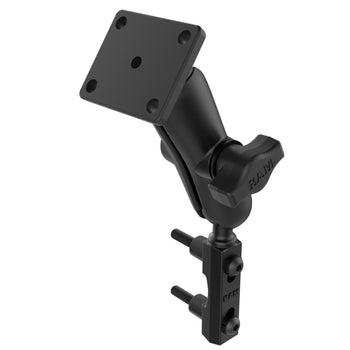

UNPKD RAM MOTORCYCLE MNT WITH AMPS BASE
Part#:RAM-B-178U UPC:793442916328 Patented
Ball Icon B SIZE
Arm Icon MED ARM
949 kr

This motorcycle mount makes attaching to handlebars, tubing, or railing a breeze. Simple to install and easy to use, the possibilities become endless. The zinc coated metal u-bolt and nuts included are designed it fit motorcycle handlebars, or circular rail that are 0.50" to 1.25" in diameter. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. High quality materials insure your GPS is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your mobile device. This product can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".

This motorcycle mount makes attaching to handlebars, tubing, or railing a breeze. Simple to install and easy to use, the possibilities become endless. The zinc coated metal u-bolt and nuts included are designed it fit motorcycle handlebars, or circular rail that are 0.50" to 1.25" in diameter. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. High quality materials insure your GPS is safe, secure, and within easy reach. RAM’s patented design also dampens shock and vibration helping to extend the life of your mobile device. This product can mount to both the brake/clutch reservoir or any round rail that is 0.5" to 1.25" in diameter. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".
hardware included

(2) M6 x 55mm Hex Bolts
(2) #1/4-20 x 2" Hex Bolts
(2) 1/4"-20 x 2.5" Hex Bolts
(2) 1/2" Spacers
(2) 1/4" Split Lock Washers
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

clamp range

.5" - 1.25" diameter

socket to socket length

3"

hole pattern

4-Hole AMPS: 1.181" x 1.496"

plate size

2" X 1.7"

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.386 kg

GPSMAP 276Cx

Tread

zumo 400

zumo 450

zumo 500

zumo 550

zumo 590

zumo 660

zumo 665

zumo XT

Tech Zumo 590

Tech Zumo 660

Tech Zumo 665
