UNPKD RAM RAYMARINE MNT W/ ROUND BASE
Part#:RAM-B-202-379-M616U UPC:793442947995
Ball Icon B SIZE
Arm Icon MED ARM
689 kr

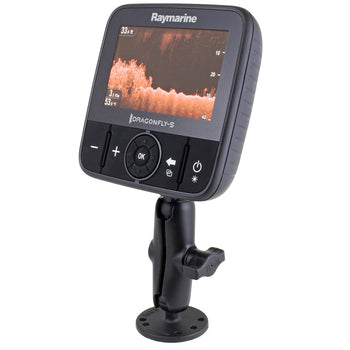

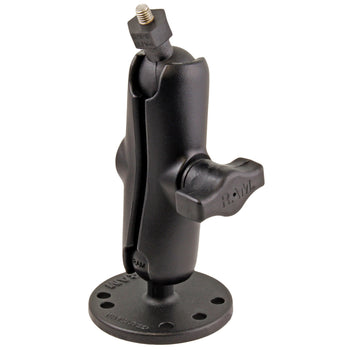

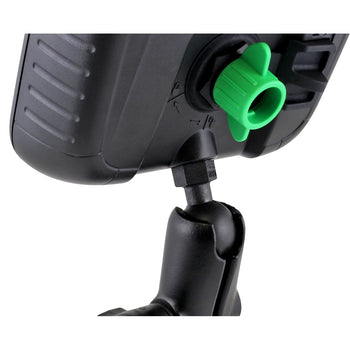

The RAM-B-202-379-M616U consists of a 2.5" diameter round base with the universal AMPS hole pattern, STANDARD size double socket arm and 1" diameter ball, containing a M6 x 30 SS HEX head bolt. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The RAM-B-202-379-M616 reduces the mounting footprint, compared to old dragonfly units that contain a large neck. This mount allows for a seamless marriage of RAM components into your Raymarine system, opening up the ball and socket system and all of our mounting options to you.
The RAM-B-202-379-M616U consists of a 2.5" diameter round base with the universal AMPS hole pattern, STANDARD size double socket arm and 1" diameter ball, containing a M6 x 30 SS HEX head bolt. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The RAM-B-202-379-M616 reduces the mounting footprint, compared to old dragonfly units that contain a large neck. This mount allows for a seamless marriage of RAM components into your Raymarine system, opening up the ball and socket system and all of our mounting options to you.
socket to socket length

3"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size

2.5" Diameter
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

Marine-grade aluminum
High strength composite
packaging type

Poly Bag
Weight

0.222 kg

Dragonfly-7 PRO

Dragonfly-5 M

Dragonfly-5 DVS

Dragonfly-5 Pro

Dragonfly-4 DV

Dragonfly-4 DVS

Dragonfly-4 PRO

WiFish
