RAM® Large Marine Electronics Mount - D Size Medium

Part#:RAM-D-111U UPC:793442201110

RAM-D-111U:RAM-D-111U_2:RAM Large Marine Electronics Mount - D Size Medium

RAM-D-111U:RAM-D-111U_3:RAM Large Marine Electronics Mount - D Size Medium

RAM® Large Marine Electronics Mount - D Size Medium

Part#:RAM-D-111U UPC:793442201110

D SIZE

MED ARM

3 249 kr

Incl. VAT

Options

Complete flat surface, drill-down mounting solution for large marine electronics with an overall height of 11.5"
RAM® Mounts ball and socket technology allows for near-infinite adjustability
Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
Backed by a lifetime warranty

Related RAM® Components

RAM® Hi-Torq™ Wrench for D Size Socket ...

RAM® Pin-Lock™ Security Nut for D & E S...

RAM® Cable Manager for Large Electronic...

RAM® Tough-Mag™ 48MM 4-Point Magnetic M...

RAM® 4" Offset Vehicle Base Riser

RAM® 7" Offset Vehicle Base Riser

Information

Information
Compatibility
Complete Your Solution
FAQ
Resources

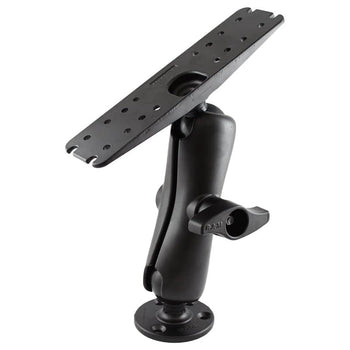

The RAM® Large Marine Electronics Mount (RAM-D-111U) is a complete, drill-down mounting solution for fish finders, chartplotters, and other large electronic devices. This kit consists of D size components, including a 3.68" diameter round base, medium-length double socket arm, and 11" x 3" rectangular adapter plate. The round base is pre-drilled with several combinations of holes, including two holes at 180° and three holes at 120°. The adapter plate contains different combinations of pre-drilled holes which will match up to popular electronic devices and gimbal brackets. Included are four shoulder washers that allow smaller hardware to fit properly in the large holes of this plate. Note: this product comes in retail packaging.

hardware included	(4) .312" x .187" Shoulder Washers
product dimensions	Overall Height: 11.5"
socket to socket length	6.88"
hole pattern	See Drawings
plate size	Top Plate: 3" x 11" Bottom Plate: 3.68" Diameter
ball size	D Size (2.25")
weight capacity	Standard Use: 6 lbs Heavy-Duty Use: 5 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	2.107 kg
Additional Information	The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Consists of

RAM-D-202U:RAM-D-202U_1:RAM Large Round Plate with Ball - D Size

RAM-D-202U:RAM-D-202U_2:RAM Large Round Plate with Ball - D Size

RAM® Large Round Plate with Ball - D Size RAM-D-202U

D SIZE

ARM

639 kr

RAM-D-201U:RAM-D-201U_1:RAM Double Socket Arm - D Size Medium

RAM-D-201U:RAM-D-201U_2:RAM Double Socket Arm - D Size Medium

RAM® Double Socket Arm - D Size Medium RAM-D-201U

D SIZE

MED ARM

1 599 kr

RAM-D-111BU:RAM-D-111BU_1:RAM Large Marine Electronics Ball Adapter - D Size

RAM-D-111BU:RAM-D-111BU_2:RAM Large Marine Electronics Ball Adapter - D Size

RAM® Large Marine Electronics Ball Adapter - D Size RAM-D-111BU

D SIZE

ARM

1 069 kr

hardware included	(4) .312" x .187" Shoulder Washers
product dimensions	Overall Height: 11.5"
socket to socket length	6.88"
hole pattern	See Drawings
plate size	Top Plate: 3" x 11" Bottom Plate: 3.68" Diameter
ball size	D Size (2.25")
weight capacity	Standard Use: 6 lbs Heavy-Duty Use: 5 lbs
materials	Marine-grade aluminum
packaging type	Poly Bag
Weight	2.107 kg
Additional Information	The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
