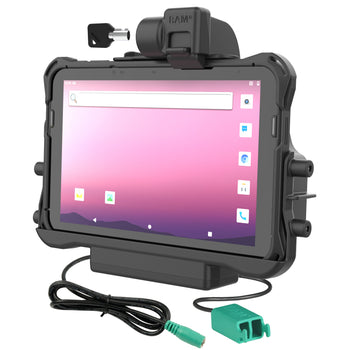

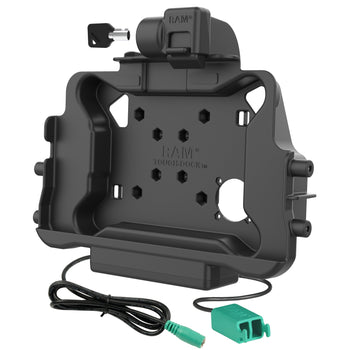

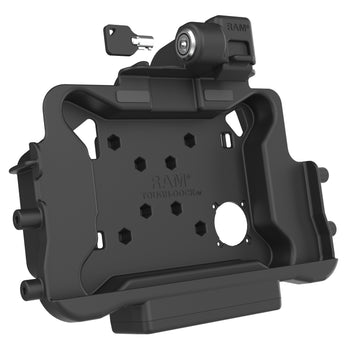

RAM® Locking Power + Dual USB Dock for Honeywell ScanPal EDA10A
Part#:RAM-HOL-HON11PD2KLU UPC:793442019395
4 719 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Locking, spring-loaded, powered dock featuring GDS® Technology™ with data and charging capabilities for the ScanPal™ EDA10A tablet (protective boot required)

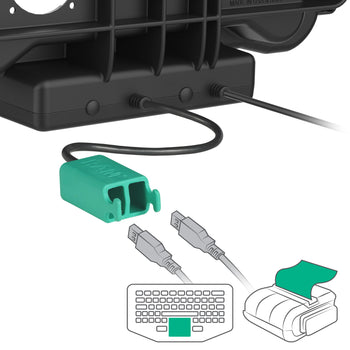

  • Power delivered through integrated pogo pin technology via 5.5mm DC Connector connect up to 2 input devices via dual USB-A connector

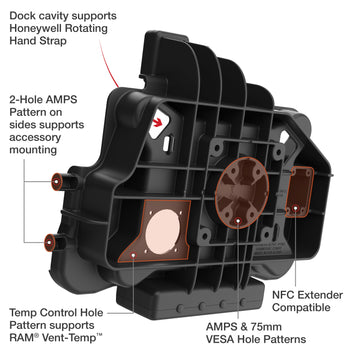

  • Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Two built-in 2-hole mounting locations for additional device mounting such as a phone compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty
Related RAM® Products
RAM® Double Socket Arm with Round Ball Plate - C Size Medium
RAM® Double Socket Arm with Round Ball ...
RAM® Double Socket Arm with Round Ball Plate - C Size Long
RAM® Double Socket Arm with Round Ball ...
RAM® Double Socket Arm with Round Ball Plate - C Size Short
RAM® Double Socket Arm with Round Ball ...
GDS® Modular 10-30V Hardwire Charger with USB-A to DC Cable
GDS® Modular 10-30V Hardwire Charger wi...
GDS® Modular 30-64V Hardwire Charger with USB-A to DC Cable
GDS® Modular 30-64V Hardwire Charger wi...

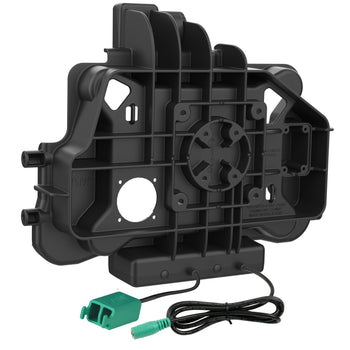

The RAM® Locking Power + Dual USB Dock for Honeywell ScanPal™ EDA10A (RAM-HOL-HON11PD2U) features a form-fit design specifically for the Honeywell ScanPal™ EDA10A tablet with the OEM protective boot. This powered holder allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's 5.5mm DC power jack. Peripheral support is provided by the built-in dual USB Type-A cable, allowing users to connect up to two input devices. It is compatible with the OEM hand-strap accessory and requires that the protective boot is installed for a secure fit. Take your solution a step further with a variety of compatible RAM® accessories, such as the RAM® NFC Extender and RAM® Vent-Temp™. This tablet holder includes a 4-hole AMPS and 75mm x 75mm VESA pattern on the back as connection points for attaching a double socket arm to complete your mounting solution. Secure any peripheral accessories or devices directly to the dock by mounting them to one of the two built-in 2-hole mounting locations compatible with the RAM® 2-hole diamond base.
hardware included

(2) Keys
(6) #8-32 x 5/8” Machine Screws
(6) #8-32 Nyloc Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nyloc Nuts
(1) Cable Clamp & Zip Tie Kit
hole pattern

75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
input voltage

5 VDC
input connector

5.5mm DC Connector
input cable length

1 Meter
output connector

(2) USB-A Female
output cable length

250mm
certifications

FCC, CE, RoHS, WEEE
Warranty

3 year warranty
Weight

0.886 kg
