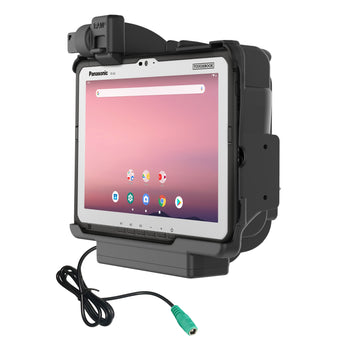

RAM® Locking Powered Dock for Panasonic FZ-A3

Part#:RAM-HOL-PAN16PLU UPC:793442934025

4 229 kr

Incl. VAT

Options

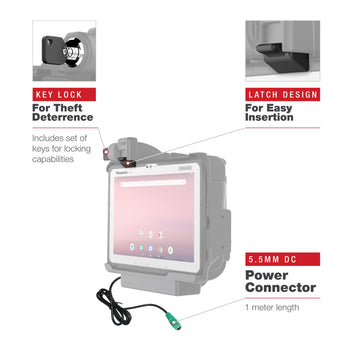

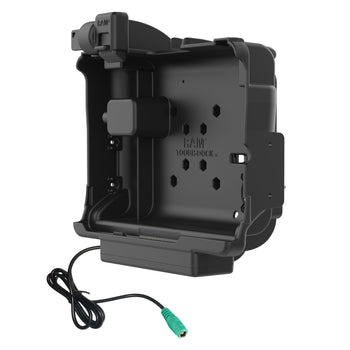

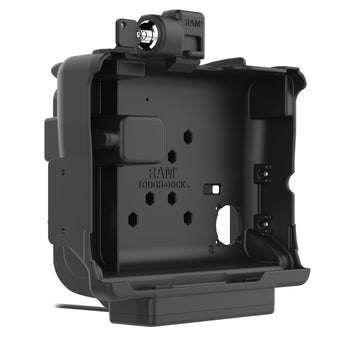

Spring-loaded, key-locking powered dock provides charging capabilities for the Panasonic FZ-A3 tablet via DC 5.5mm power jack

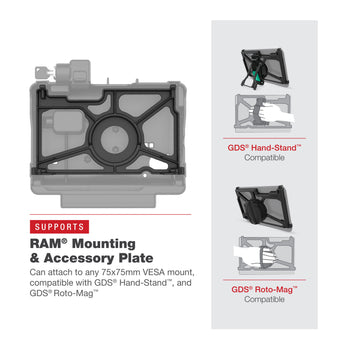

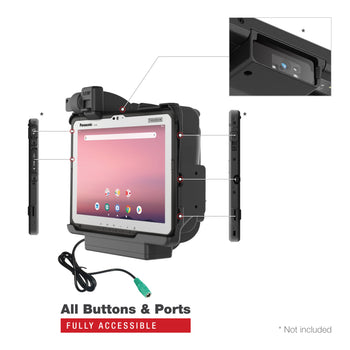

All buttons and ports on device are exposed and fully accessible supports Panasonic extended battery and the RAM® Mounting & Accessory Plate

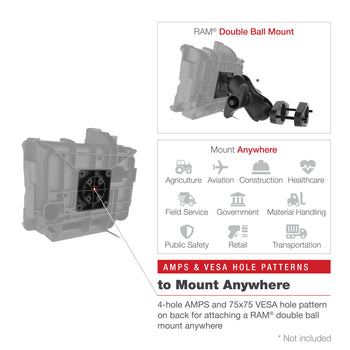

Compatible with RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
Backed by a 3-year warranty

Related RAM® Components

GDS® 10-28VDC Input (16VDC Output) Hard...

GDS® 28-60VDC Input (16VDC Output) Hard...

GDS® Hand-Stand™ for Panasonic FZ-A3

GDS® Roto-Mag™ 3-in-1 Accessory for Pan...

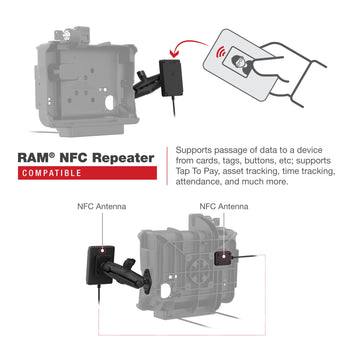

RAM® NFC Extender with Drill-Down Doubl...

RAM® NFC Extender with Dashboard Mount

Information

Information
Compatibility
Complete Your Solution
Resources

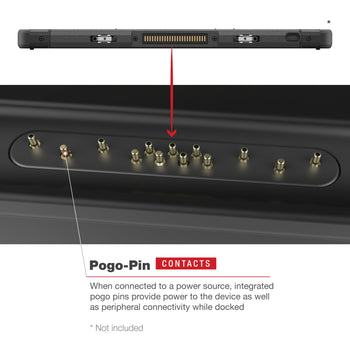

The RAM® key-locking, powered dock for the Panasonic FZ-A3 allows you to keep the device charged through the pogo pin contacts when the device is docked—power is provided by connecting to the dock's 5.5mm DC power jack. This dock features cutouts that leave all buttons and ports exposed and accessible while also supporting the Panasonic extended battery, as well as RAM® Mounting & Accessory Plate. A 2-Hole AMPS Accessory bracket can easily be attached to the dock to add an additional mounting location for another device such as a phone. This vehicle dock is compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution.

hardware included	(2) Keys (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts
product dimensions	Overall Height: 10.5" Overall Width: 11.19" Overall Depth: 4.16"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 75 x 75mm VESA
materials	High strength composite
packaging type	Poly Bag
regulatory	FCC, IC, E-Mark
certifications	CE, RoHS
Weight	1.102 kg
Additional Information	This dock will not support the factory OEM hand strap. For hand strap and other accessory capabilities that are compatible with this dock, see RAM-202-PAN16U.

hardware included	(2) Keys (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts
product dimensions	Overall Height: 10.5" Overall Width: 11.19" Overall Depth: 4.16"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 75 x 75mm VESA
materials	High strength composite
packaging type	Poly Bag
regulatory	FCC, IC, E-Mark
certifications	CE, RoHS
Weight	1.102 kg
Additional Information	This dock will not support the factory OEM hand strap. For hand strap and other accessory capabilities that are compatible with this dock, see RAM-202-PAN16U.
