RAM® Quick-Grip™ Pro with Ball & Qi2 15W Wireless Charger
Part#:RAM-HOL-PD5B-W2MU UPC:793442026577
Ball Icon B SIZE
Arm Icon ARM
2 049 kr
Incl. VAT

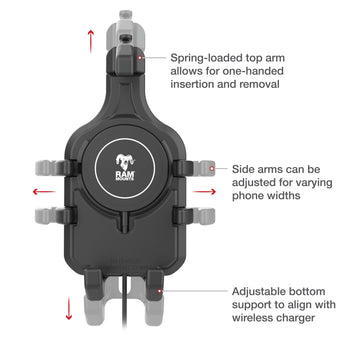

  • Spring-loaded holder features adjustable side supports overmolded with a soft rubber that provide a secure hold for a variety of phones easily insert and remove your phone with one hand

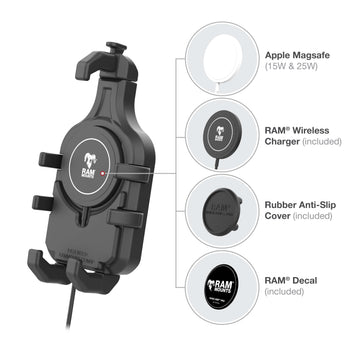

  • Includes RAM® Qi2 wireless charger that fits seamlessly in the integrated center cavity
  • Comes with an optional device tether for open cockpit environments
  • Made of high-strength composite for durability and reliability in the most demanding environments
  • Mounting components backed by a lifetime warranty electronics backed by a 3-year warranty
The RAM® Quick-Grip™ Pro with Ball & Qi2 15W Wireless Charger (RAM-HOL-PD5B-W2MU) is the next evolution of the RAM® Quick-Grip™ series. Re-designed with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. This phone holder comes with the RAM® Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM® Quick-Grip™ Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. Complete the solution by building your mount—this holder is RAM® Compatible™ and includes a B size diamond ball to be installed on the 2-hole AMPS pattern. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.
hardware included

Assembly Hardware
holder dimensions

Height Range: 5.5" - 7.75"
Width Range: 2.625" - 3.75"
Max Depth: .67"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

High strength composite
packaging type

Poly Bag
power specifications

Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
input voltage

USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A
power output

BPP - 5W
EPP - 7.5W
MPP - 15W
output connector

USB Type-C Male with USB-A Adapter
output cable length

1 Meter
operating temperature

0°C to +40°C
storage temperature

-20°C to +80°C
regulatory

Over Current Protection
Short circuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance
certifications

IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification
Weight

0.0 kg
Additional Information
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.

Top hook may block front facing camera and facial recognition on select phones.

The included wireless charger will support up to 8mm charging distance between puck and device.

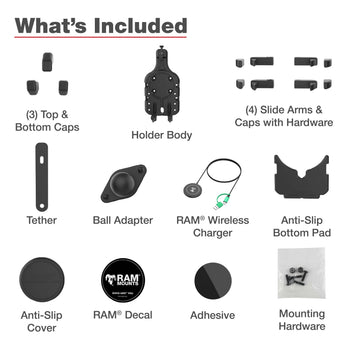

Consists of

RAM® Quick-Grip™ Pro Phone Holder RAM-HOL-PD5U
1 039 kr
RAM® Diamond Ball Base - B Size RAM-B-238U
Ball Icon B SIZE
Arm Icon ARM
169 kr
RAM® Qi2 15W Wireless Charger RAM-GDS-CHARGE-W2M
649 kr

iPhone 8 Plus

iPhone X

iPhone Xr

iPhone Xs

iPhone Xs Max

iPhone 11

iPhone 11 Pro

iPhone 11 Pro Max

iPhone 12

iPhone 12 Pro

iPhone 12 Pro Max

iPhone 13

iPhone 13 Pro

iPhone 13 Pro Max

iPhone 14

iPhone 14 Plus

iPhone 14 Pro

iPhone 14 Pro Max

iPhone 15

iPhone 15 Plus

iPhone 15 Pro

iPhone 15 Pro Max

iPhone 16

iPhone 16 Plus

iPhone 16 Pro

iPhone 16 Pro Max

iPhone 16e

iPhone 17

iPhone 17 Pro

iPhone 17 Pro Max

iPhone Air

Evolve X

BV9900

BV9900 Pro

Pixel 3

Pixel 3 XL

Pixel 4

Pixel 4 XL

Pixel 5

Pixel 6

Pixel 6 Pro

Pixel 7

Pixel 7 Pro

Pixel 8

Pixel 8 Pro

Pixel 9

Pixel 9 Pro

Pixel 9 Pro XL

Pixel 9a

Mate 20 Pro

P30 Pro

G6

G6+

G7 ThinQ

G8 ThinQ

G8S ThinQ

V30

V35 ThinQ

V40 ThinQ

V50 ThinQ

8 Sirocco

9 PureView

Eluga X1 Pro

Phone 2

Galaxy Note 10

Galaxy Note 10 Plus

Galaxy Note 8

Galaxy Note 9

Galaxy Note20

Galaxy Note20 Ultra

Galaxy S10

Galaxy S10 5G

Galaxy S10+

Galaxy S10e

Galaxy S20

Galaxy S20 FE 5G

Galaxy S20 Ultra 5G

Galaxy S20+

Galaxy S21 5G

Galaxy S21 Ultra 5G

Galaxy S21+ 5G

Galaxy S22 5G

Galaxy S22 Ultra 5G

Galaxy S22+ 5G

Galaxy S23

Galaxy S23 Ultra

Galaxy S23+

Galaxy S24

Galaxy S24 Ultra

Galaxy S24+

Galaxy S25

Galaxy S25 Ultra

Galaxy S25+

Galaxy S8

Galaxy S8 Active

Galaxy S8+

Galaxy S9

Galaxy S9+

Xperia XZ2

Xperia XZ3

Mi 9

Mi 9 Explorer

Mi Mix 2S

Mi Mix 3

Axon 10 Pro

Axon 9 Pro
