RAM® Quick-Grip™ Pro XL with Ball & Qi2 15W Wireless Charger
Part#:RAM-HOL-PD7B-W2MU UPC:793442026744
Ball Icon B SIZE
Arm Icon ARM
2 099 kr
Incl. VAT
  • Spring-loaded holder provides a secure hold for phones and handheld devices easily insert and remove your phone with one hand

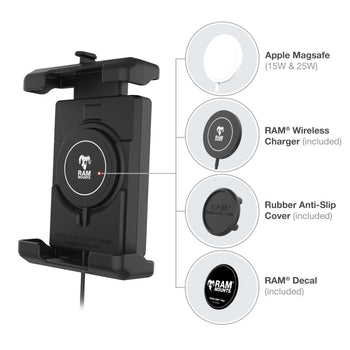

  • Includes RAM® Qi2 wireless charger that fits seamlessly in the integrated center cavity
  • Comes with an optional device tether for open cockpit environments
  • Made of high-strength composite for durability and reliability in the most demanding environments
  • Mounting components backed by a lifetime warranty electronics backed by a 3-year warranty

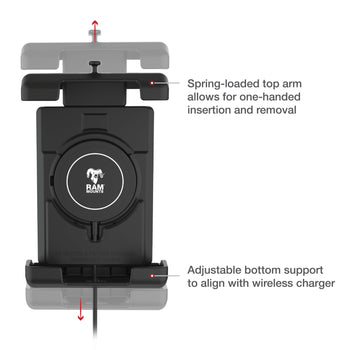

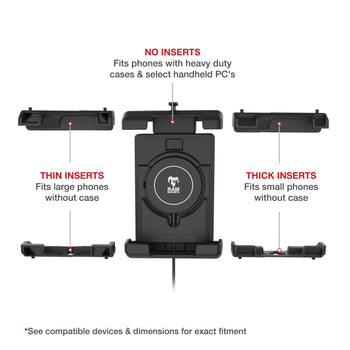

The RAM® Quick-Grip™ Pro XL with Ball & Qi2 15W Wireless Charger (RAM-HOL-PD7B-W2MU) is the next evolution of the RAM® Quick-Grip™ series, re-designed to be the most rugged universal phone holder that fits a wide range of phones and handheld devices. This phone holder comes with the RAM® Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM® Quick-Grip™ Pro XL features a spring-loaded design that allows easy one-handed insertion and removal of your device. Large and small shims are included to provide a snug, secure fit for large and small phones without a case. Complete the solution by building your mount—this holder is RAM® Compatible™ and includes a B size diamond ball to be installed on the 2-hole AMPS pattern. RAM® recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

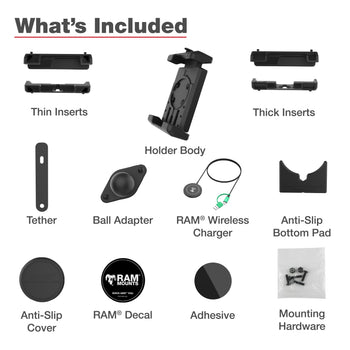

hardware included

Assembly Hardware
holder dimensions

Height Range: 5.375" - 7"
Width Range: 2.75" - 3.5"
Max Depth: .75"
ball size

B Size (1")
weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
materials

High strength composite
packaging type

Poly Bag
power specifications

Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
input voltage

USB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A
power output

BPP - 5W
EPP - 7.5W
MPP - 15W
output connector

USB Type-C Male with USB-A Adapter
output cable length

1 Meter
operating temperature

0°C to +40°C
storage temperature

-20°C to +80°C
regulatory

Over Current Protection
Short circuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance
certifications

IP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification
Weight

0.0 kg
Additional Information
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. Click here to learn more.

The included wireless charger will support up to 8mm charging distance between puck and device.

Consists of

RAM® Quick-Grip™ Pro XL Phone Holder RAM-HOL-PD7U
1 089 kr
RAM® Diamond Ball Base - B Size RAM-B-238U
Ball Icon B SIZE
Arm Icon ARM
169 kr
RAM® Qi2 15W Wireless Charger RAM-GDS-CHARGE-W2M
649 kr

iPhone 11

iPhone 11 Pro

iPhone 11 Pro Max

iPhone 12

iPhone 12 Pro

iPhone 12 Pro Max

iPhone 13

iPhone 13 Pro

iPhone 13 Pro Max

iPhone 14

iPhone 14 Plus

iPhone 14 Pro

iPhone 14 Pro Max

iPhone 15

iPhone 15 Plus

iPhone 15 Pro

iPhone 15 Pro Max

iPhone 16

iPhone 16 Plus

iPhone 16 Pro

iPhone 16 Pro Max

iPhone 16e

iPhone 17

iPhone 17 Pro

iPhone 17 Pro Max

iPhone Air

iPhone 8

iPhone 8 Plus

iPhone SE

iPhone X

iPhone Xr

iPhone Xs

iPhone Xs Max

Evolve X

Pixel 3

Pixel 3 XL

Pixel 4

Pixel 4 XL

Pixel 5

Pixel 6

Pixel 6 Pro

Pixel 7

Pixel 7 Pro

Pixel 8

Pixel 8 Pro

Pixel 9

Pixel 9 Pro

Pixel 9 Pro XL

Pixel 9a

Mate 20 Pro

P30 Pro

G6

G6 Plus

G7 ThinQ

G8 ThinQ

G8S ThinQ

V30

V35 ThinQ

V40 ThinQ

V50 ThinQ

8 Sirocco

9 PureView

Eluga X1 Pro

Phone 2

Galaxy Note 10

Galaxy Note 10 Plus

Galaxy Note 20

Galaxy Note 20 Ultra

Galaxy Note 8

Galaxy Note 9

Galaxy S10

Galaxy S10 5G

Galaxy S10 Plus

Galaxy S10e

Galaxy S20 5G

Galaxy S20 FE 5G

Galaxy S20 Plus 5G

Galaxy S20 Ultra 5G

Galaxy S21 5G

Galaxy S21 Plus 5G

Galaxy S21 Ultra 5G

Galaxy S22 5G

Galaxy S22 Plus 5G

Galaxy S22 Ultra 5G

Galaxy S23

Galaxy S23 Plus

Galaxy S23 Ultra

Galaxy S24

Galaxy S24 Plus

Galaxy S24 Ultra

Galaxy S25

Galaxy S25 Plus

Galaxy S25 Ultra

Galaxy S8

Galaxy S8 Active

Galaxy S8 Plus

Galaxy S9

Galaxy S9 Plus

Xperia XZ2

Xperia XZ3

Mi 9

Mi 9 Explorer

Mi Mix 2S

Mi Mix 3
