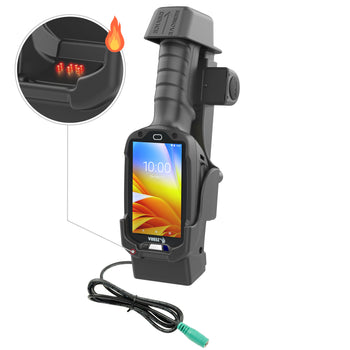

RAM® Powered Dock for Zebra TC8300 - Heated Pins
Part#:RAM-HOL-ZE26PHU UPC:793442017636
4 069 kr
  • Form-fit powered dock designed specifically for the Zebra TC8300 Touch Computer
  • Charging capabilities provided by 5.5mm DC barrel connector and built-in pogo pin docking contacts for a seamless charging experience pogo pins feature self-aligning docking pads that conform to the seated device

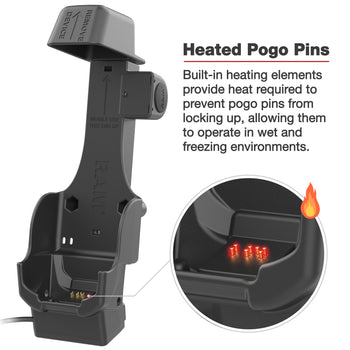

  • Heating elements provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments.
  • Compatible with RAM® 2-hole AMPS pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty
This Powered Spring-Loaded Dock with Heated Pogo Pins (RAM-HOL-ZE26PHU) features a form-fitting design specifically for the Zebra TC8300. This dock has built-in heating elements that provide the necessary heat required to prevent pogo pins from locking up, allowing them to operate in wet and freezing environments. Charging capabilities are provided by a 5.5mm DC barrel pigtail connector and built-in pogo pin docking contacts for a seamless charging experience. Thoughtfully designed for easy, one-handed device insertion. Finish the solution by building your mount—these docks are RAM® Compatible™ equipped with a 2-hole AMPS pattern for adding a diamond ball adapter. Take advantage of thousands of RAM® mounting components to configure the perfect TC8300 solution.
hardware included

(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts

product dimensions

Overall Height: 10.36"
Overall Width: 3.25"
Overall Depth: 4.08"

hole pattern

2-Hole AMPS: 1.912"

materials

High strength composite

packaging type

Poly Bag

Warranty

3 year warranty

Weight

0.332 kg

TC8300
