RAM® Pin-Lock™ Marine Electronic Mount with Gimbal Knob - D Size Medium
RAM® Pin-Lock™ Marine Electronic Mount with Gimbal Knob - D Size Medium
D SIZE
MED ARM
3 919 kr

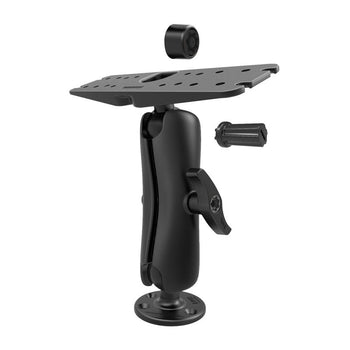

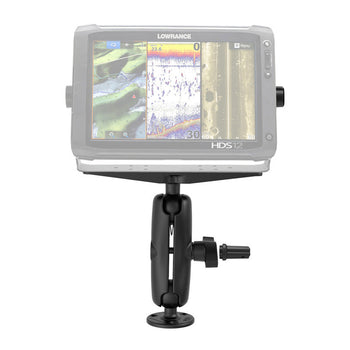

The RAM-SG-D-111U consists of a 3.68" diameter round base, STANDARD LENGTH double socket arm, 11" x 3" rectangular base, RAM mixed combination Pin-Lock™ security nut/knob and key knob for Gimbal Brackets. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts.
| hardware included |
(2) RAM Pin-Lock Security Keys |
| product dimensions |
Overall Height: 11.5" |
| socket to socket length |
6.88" |
| hole pattern |
See Drawings |
| plate size |
Top Plate: 3" x 11" |
| ball size |
D Size (2.25") |
| weight capacity |
Standard Use: 6 lbs |
| materials |
Marine-grade aluminum |
| packaging type |
Poly Bag |
| Weight |
2.028 kg |
| Additional Information |
The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
|
Består av
RAM® Double Socket Arm with RAM® Pin-Lock™ Security Nut - D Size Medium
RAM-D-201-SU
D SIZE
MED ARM
1 879 kr
D SIZE
MED ARM
echoMAP 70DV
ECHOMAP Ultra 122sv
ECHOMAP Ultra 126sv
GPSMAP 740s
GPSMAP 1020xs
GPSMAP 1040xs
GPSMAP 1222/xsv Touch
GPSMAP 1242xsv/Touch
Fishfinders and GPS Chartplotters
800 Series
Fishfinders and GPS Chartplotters
HDS Carbon 9
HDS Carbon 12
Hook²-12
Elite-9 CHIRP
Elite-9 Ti
Elite-9 Ti²
Elite-12 Ti
Elite-12 Ti²
Fishfinders and GPS Chartplotters
Axiom 7
Axiom 9
C120
Fishfinders and GPS Chartplotters
