RAM® No-Drill™ Laptop Mount for '00-06 chevy C/K + More
Part#:RAM-VB-102-SW1 UPC:793442901249 Patented
Ball size C
7 489 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

RAM® Adjustable Laptop Screen Support Arm
Recommended add-on
RAM® Adjustable Laptop Screen Support Arm
379 kr
Details
Related RAM® Products
RAM® Safe-T-Charge™ Battery Protection System
RAM® Safe-T-Charge™ Battery Protection ...
RAM® Tele-Pole™ Rubber Cap
RAM® Tele-Pole™ Rubber Cap
RAM® Remove-A-Pole™ Quick Release Riser for Tele-Pole™ & Pedestals
RAM® Remove-A-Pole™ Quick Release Riser...
RAM® Tough-Claw™ Medium Clamp Ball Base
RAM® Tough-Claw™ Medium Clamp Ball Base
RAM® Tough-Claw™ Medium Clamp Base with Ball
RAM® Tough-Claw™ Medium Clamp Base with...
RAM® Double U-Bolt Ball Base for 1.25" - 1.5" Rails - C Size
RAM® Double U-Bolt Ball Base for 1.25" ...

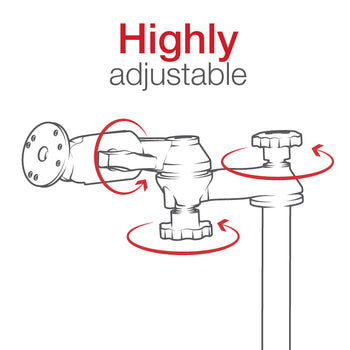

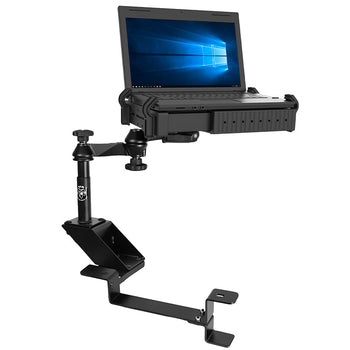

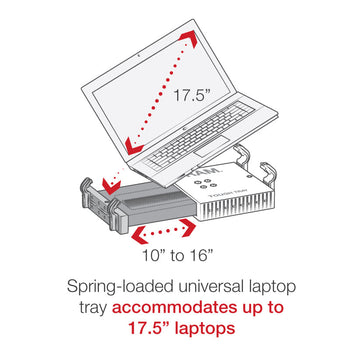

This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 9 to 13 inches which includes the fixed 4 inch riser. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.
hardware included

Assembly Hardware
tray dimensions

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"
hole pattern

Seat Bolt Distance: 11.75" center to center
ball size

C Size (1.5")
materials

Powder coated steel
Marine-grade aluminum
High strength composite
packaging type

Box
Weight

6.804 kg
Additional information

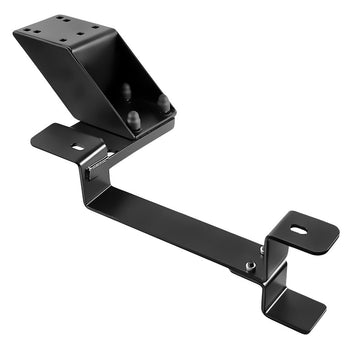

For vehicles with power seats please see RAM-VB-131A-SW1. Angled step moves mount away from passenger leg space. There are a total of 3 pieces of steel that make this part, 2 are welded together and the 3rd is bolted. Base will not interfere with factory installed console or 4WD lever.
