RAM® No-Drill™ Universal Laptop Mount for Heavy Duty Trucks
Part#:RAM-VB-168-SW3 UPC:793442033643
Ball size C
11 429 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

RAM® Adjustable Laptop Screen Support Arm
Recommended add-on
RAM® Adjustable Laptop Screen Support Arm
379 kr
Details
  • Custom laptop vehicle mount installs using passenger seat bolts no drilling required
  • Triple articulating swing arm provides a high-level of adjustability
  • Universal laptop tray accommodates most laptops
  • Made of powder-coated steel and marine-grade aluminum
  • Backed by a lifetime warranty

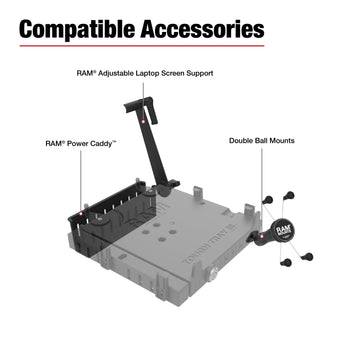

The RAM® No-Drill™ Universal Laptop Mount for Heavy Duty Trucks (RAM-VB-168-SW3) installs quickly and easily to the passenger seat rails using the existing vehicle hardware. This laptop mounting kits is telescoping, allowing users to adjust the height range from 12” to 18”. Triple swing arms provide articulation and 18” of reach for passenger and driver access to the mounted device. RAM® rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM® Tough-Tray™ III laptop holder accommodates 10" to 17" laptops (measured diagonally). The tray features four adjustable retaining arms that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. Upgrade your mounting kit with compatible accessories that are not included, such as the RAM® Adjustable Screen Support and RAM® Power Caddy. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners. Verify full range of vehicle compatibility on tab above.
hardware included

Assembly Hardware

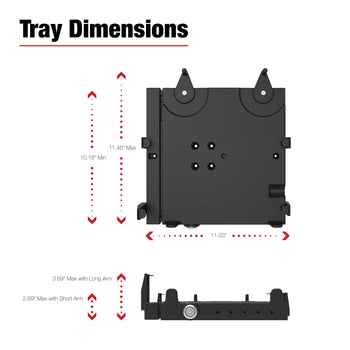

tray dimensions

Width Range: 10" - 15.25"
Side Arm Clamp Height: 0" - 1.875"
Depth Range: 7.625" - 10.625"
Tray Thickness: 1.26"
hole pattern

See Drawing
ball size

C Size (1.5")
materials

Powder coated steel
Marine grade-aluminum
High strength composite
packaging type

Box
Additional information
If the heater box is under the seat, the installer may need to drill holes in the base to accommodate vehicle mounting holes or studs. Also, the heater box may cause the system to sit higher than normal. Pole may be cut down by installer to lower kit. This will not void the warranty. May not work with swivel style seats for big rigs.
