VEHICLE SYSTEM CHEVROLET SILVERADO
Part#:RAM-VB-191-SW1 UPC:793442942099 Patented
Ball Icon C SIZE
Arm Icon ARM
7 259 kr

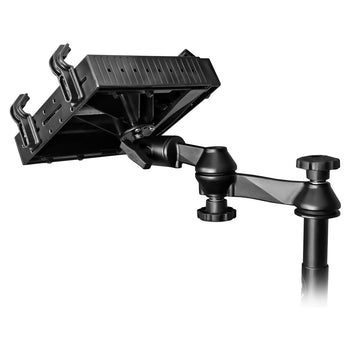

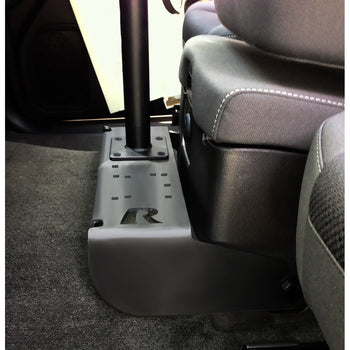

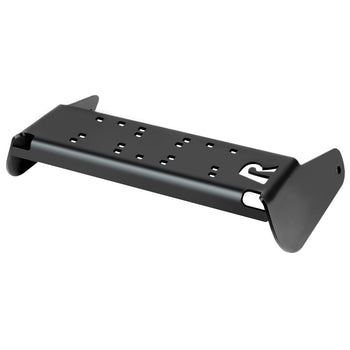

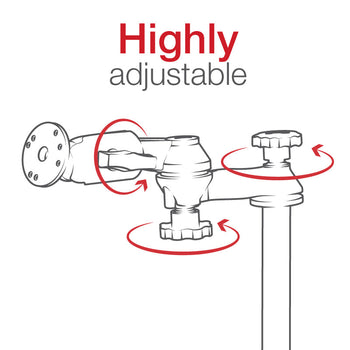

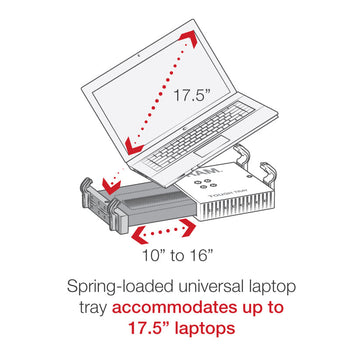

This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.

This No-Drill™ Laptop Stand System installs quickly and easily into the specified vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12 to 18 inches. Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation. The RAM Tough-Tray™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens). The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support GPS or other electronics.
hardware included

Assembly Hardware
Foot Stabilizer
(2) M10-1.5 x 60mm Hex Bolts
(2) 1.68" Stand-Offs
(2) 3/8" Fender Washers

tray dimensions

Width Range: 10" - 16"
Side Arm Clamp Height: .5" - 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"

ball size

C Size (1.5")

materials

Powder coated steel
Marine grade-aluminum
High strength composite

packaging type

Box

Weight

8.165 kg

Additional Information
This base is recommended for the Chevrolet Silverado 1500 with 40/20/40 bench seat and no pass through console. For all other Chevrolet Silverado 1500 models refer to the RAM-VB-193-SW1. This product will not install properly into trucks with the 4x4 lever on the center hump of the vehicle.

Silverado 1500 Work Truck with 40/20/40 bench seat ONLY (2014-2015)
