RAM® Composite Double Ball Mount for Garmin echo 200, 500c & 550c
Part#:RAP-101U-G4 UPC:793442940088
Ball size C
Arm length Medium
909 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

Related RAM® Products
RAM® Pin-Lock™ Security Knob for C Size Socket Arms
RAM® Pin-Lock™ Security Knob for C Size...
RAM® Key Lock Knob with Steel Insert for C Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for C Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...

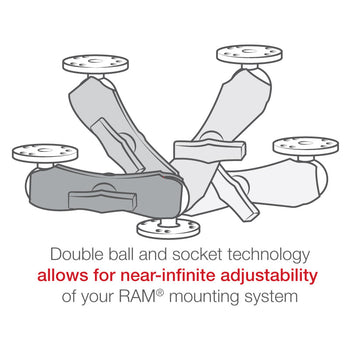

The RAP-101U-G4 consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm and round adapter base that attaches directly to the back of the Garmin echo™. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. Included is hardware that is used to attach the Garmin echo™ to the RAM Mount.
hardware included

(3) #8-32 x 5/8" Machine Screws
(3) #8-32 Nylock Nuts
socket to socket length

4.66"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
plate size

2.5" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

High strength composite
packaging type

Poly Bag
Weight

0.386 kg
