RAM® Composite Double Ball Mount for Lowrance Elite-4 & Mark-4 Series

Part#:RAP-B-101U-LO11 UPC:793442940309

RAP-B-101U-LO11:RAP-B-101U-LO11_2:RAM® Composite Double Ball Mount for Lowrance Elite-4 & Mark-4 Series

RAM® Composite Double Ball Mount for Lowrance Elite-4 & Mark-4 Series

Part#:RAP-B-101U-LO11 UPC:793442940309

Ball Size

B Size C Size

Size Guide

Size	Ball Diameter	Max Load	Best For
A	0.56″ (14.3 mm)	0.5 lb (0.2 kg)	Action cameras and other ultra-light devices
B	1″ (25.4 mm)	2 lbs (0.9 kg)	Phones, GPS units, and small tablets — the most common size
C	1.5″ (38.1 mm)	4 lbs (1.8 kg)	Large tablets, fish finders, and rougher rides
D	2.25″ (57.2 mm)	6 lbs (2.7 kg)	Rugged tablets, laptops, and heavy equipment
E	3.38″ (85.9 mm)	15 lbs (6.8 kg)	Large displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1″ B ball, while RAM-D-201 uses a 2.25″ D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.

Arm length Medium

Options

559 kr

Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

Recommended add-on

RAM® Pin-Lock™ Security Knob for B Size Socket Arms

169 kr

Details

Complete flat surface, drill-down mounting solution for the Lowrance Elite series with an overall height of 5"
Includes quick release B size ball adapter for Lowrance marine electronics, medium length B size double socket arm, and round plate with 1" B size ball RAM® Mounts ball and socket technology allows for near-infinite adjustability
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a lifetime warranty

Related RAM® Products

RAM® Pin-Lock™ Security Knob for B Size...

RAM® Key Lock Knob with Steel Insert fo...

RAM® Key Lock Knob with Brass Insert fo...

Information

Information
Resources

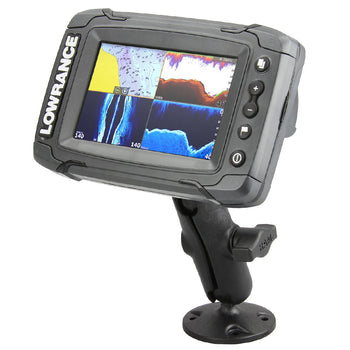

The RAP-B-101U-LO11 consists of a composite 2.5" diameter round base with the universal AMPS hole pattern, composite B size medium length double socket arm, and adapter base that inserts directly to the back of Lowrance Elite-4, Mark-4, and Hook 4 fish finders. The adapter includes a quick release mechanism, allowing you to remove or transfer your fish finder in seconds. Each 1" rubber ball connects to the composite double socket arm, allowing for near-infinite adjustability and the ideal viewing angle.

socket to socket length	3"
hole pattern	4-Hole AMPS: 1.181" x 1.496"
plate size	2.5" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.177 kg
Additional information	This product is not compatible with the standard Lowrance Elite-7.
