RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3

Part#:RAM-101-225B2-SAM60CP-V7CU UPC:793442022159

RAM® EZ-Roll'r™ USB-C Powered Mount for Samsung Tab Active5 & 3

Part#:RAM-101-225B2-SAM60CP-V7CU UPC:793442022159

C SIZE

MED ARM

4 049 kr

Incl. VAT

RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable
Compatible with the Samsung OEM skin as well as the RAM® Skin™ built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
Access to speakers, mics, and headphone jack remain while device is docked allows access to the GDS® shoulder strap loops on RAM® Skin™
Backed by a 3-year warranty

Related RAM® Components

GDS® Roto-Mag™ 3-in-1 Accessory with Gr...

GDS® Hand-Stand™ Hand Strap and Kicksta...

GDS® Shoulder Strap Accessory

GDS® Shoulder Strap Accessory with Brea...

GDS® Hand-Stand™ Magnetic Hand Strap an...

GDS® Hand-Stand™ with Risers for Vehicl...

Information

Information
Compatibility
Complete Your Solution
FAQ
Resources

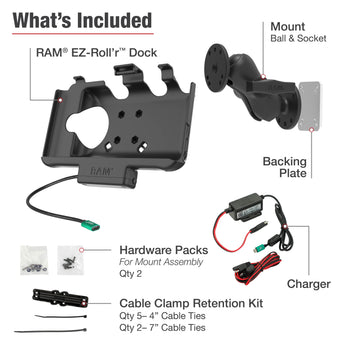

RAM® Mounts has partnered with Samsung to develop a powered cradle for the Samsung Galaxy Tab Active5, Tab Active3 & 2. Compatible with the Samsung OEM case as well as the RAM® Skin™, this cradle has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. This ultra-low cost cradle provides power to the device through the pogo pin interface on the tablet and can be easily rotated for both portrait and landscape operation of the device. This complete mounting kit includes a 2.10" x 2.60" steel backing plate with #8-32 threaded holes, two 2.5” round ball plates, medium length double socket arm, and a GDS® modular hardwire charger – an ideal solution for providing power to the Galaxy Tab Active5, 3 & 2.

hardware included	Assembly Hardware (1) 2.10" x 2.60" Steel Backing Plate (4) #8-32 x 1" Screws (4) #8 Split Lock Washers (4) #8 Flat Washers (1) Cable Clamp (1) Hardwire Charger
socket to socket length	3"
ball size	C Size (1.5")
weight capacity	Standard Use: 4 lbs Heavy-Duty Use: 3 lbs
materials	Steel Marine-grade alluminum High strength composite
packaging type	Poly Bag
input voltage	5.3-5.4VDC
output voltage	5VDC
power output	500mA
input connector	USB Type-C Female
input cable length	215mm
operating temperature	-10°C to +70°C
storage temperature	-40°C to +70°C
regulatory	Overvoltage/Load Dump Compliance: Meets SAE J-1113 FCC, CE, UKCA, IC
certifications	E-Mark Certification Integrated Short Circuit Protection WEEE and RoHS Compliant USB 2.0 BC 1.2 DCP Support IEC/UL 62368-1
Weight	1.021 kg
Additional Information	*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0. This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
